Goldentech Machinery Industry Co., Ltd.

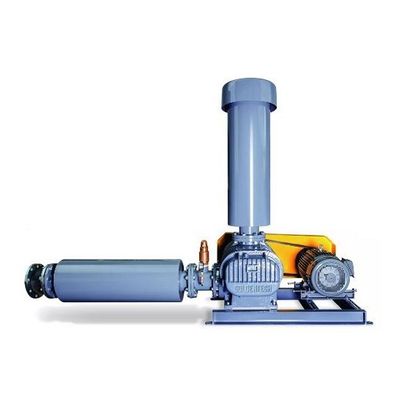

Goldentech - Model GTV Series -Vacuum Roots Blowers
Goldentech three lobes type roots blower was manufactured by CNC machine for precise rotors for high performance, and low noise and vibration.
Most popular related searches
root blower
noise and vibration
blower
mixing aerator
aeration tank
bearing lubrication
air mixing
wastewater treatment
roots type blower
roots vacuum blower
- Wide range for outlet air volume and pressure
- Bore: 40 ~ 400A (1.5” ~ 16”)
- Capacity: 0.5 ~ 360 ?/min
- Pressure: 0~ 8,000 mmAq
- Stable outlet air volume and pressure change.
- Clear outlet air. No oil polluted. Dual oil cases seperated from air cell.
- Rigid and solid construction. Easy for maintenance.
- Bearings lubricated by gear oil. Good heat radiation. Long working hours.
Longer Bearing Life
Less vibration transmitted throught the lobe results approximately 20% longer bearing life.
Lower Noise
Pressure pluses are the major noise source of blower.
Three lobes` design can efficiently reduce noise by approximately 5dB.
Lower energy consumption
Three lobes` design control backflow pressure to rotor so reduce energy consumption.
- Wastewater treatment
- Aquaculture Farm
- Particle (pneumatic or pressure) conveying
- Paper industry
- Eletroplating pool Air mixed
- Aeration tank
