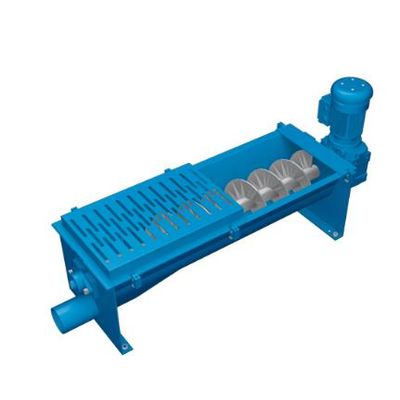

ARPModel VSS 100 -Vacuum Suction Units and Slide Valves

SHARE

The vacuum suction unit conducts the shredded chips via a worm conveyor to an intake port connected to the suction system. The vacuum suction unit is normally mounted downstream of the discharge conveyor of a machine tool. As an option, a shredder can be used upstream, in order to break up the chips to an extractable quality.

Most popular related searches
  • Throughput capacity: up to approx 100 kg/h
  • Driving power of screw conveyor: 0,25 kW
  • Weight (net): ca. 67,5 kg
  • Dimensions L x W x H: 1250 x 465 x 360 mm
  • Feed opening L x W: 405 x 300 mm

* The specifications are approx. values, considerable variations are possible depending on the chip type. Throughput of other materials on inquiry. Subject to technical changes.
