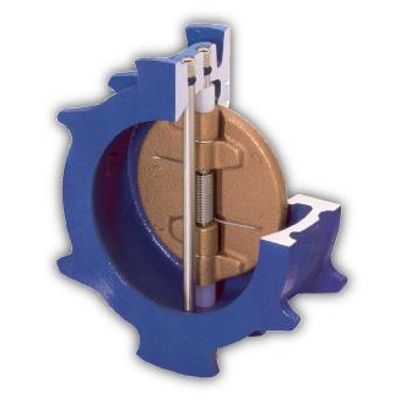

Val-Matic - Dual Disc Check Valve
The Dual Disc Check Valve with its compact wafer design and low cost have made it a popular choice when space and price are major factors in valve selection. The compact design features non-slam spring-assisted closing.
Most popular related searches
- Wafer Style available in sizes 2"- 66"
- Grooved End Style available in sizes 2”- 12”
- ANSI Class 125 and ISO PN 10 and PN 16 connections for Wafer
- IPS connections for Grooved End
- Available for Air Service - *Contact Factory*
- Cycle tested 50,000 cycles to assure long, trouble free life
- Manufactured under a certified ISO 9001 quality system
- Lift and Pivot Action - reduces seat wear, prolongs seat life
- Stabilization Spheres - prevent vibration and wear
- Disc Seal Overlap - provides positive seal, prevents seat distortions
- Disc Stabilization - prevents disc flutter
- Flow Sensitive Closure - spring assisted closure minimizes the potential for water hammer
- Pressure Sensitive Vulcanized Seats - provide tight closure at both low and high pressures
- Body Alignment Fins - provide precise alignment in ANSI 125 and ISO PN10 and PN16 installations
- 2" - 12" 8800 Dual Disc* Check Valve - UL/FM Approved
- 14" - 60" 8800 Dual Disc® Check Valve
