Valgo - Model CR/SS/ALU -CTL Line
Our Cut To Length Line Comes With Cr/Hr In Different Thickness And Different Model Like…..
(1)”Flycut (With Flying Shear) (2) “Servocut” (Loop Line) And For Hr Material Start-Stop Line, Also We Make As Per Customer’s Requirement (Custimize Model)

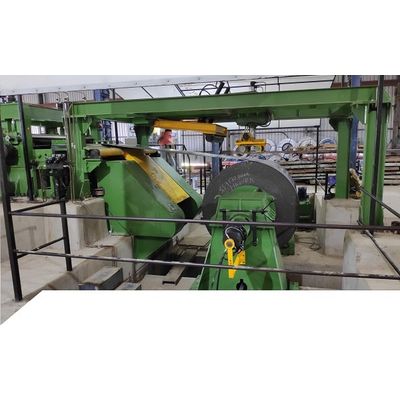

- Cr Flycutshear Type Cut To Length Line
Our Flycut Type Cut To Length Line Inculds With Best Leveling Machinein With Flying Shearing Is Pricision Production Machine For Uncoiling Coil With Straightening, Measuring Sheet Of Cross Cutting Length And Stacking
- Coilcar
- Uncoiler
- Snubber
- Pitchroll Or Feeder Unit
- Leveler
- Fly Type Shear Or Rotary Shear (As Per Your Requirement)
- Convyor Unit
- Stacking Unit
- All Hydralic And Pneumatic System
- All Electric Motor With Plc Based Computer System
We also design customized cut to length line as per costumer’s requirement. If you require punching unit in your line or edge triming unit or paper winder at decoiler & plastic lamination unit in line.
We also design belt conveyor & sheet conveyor system with stacking system by alternate mouting trolley.
We can design as per your requirement for less time in coil processing.
Valgo machinery private limited is only destination for all coil processing and coil handling machinery
| MODEL | PROCESSING METERIAL | PROCESSING SHEET THK | PROCESSING SHEET WIDTH | COIL WIGHT | CUTTING ACCURACY | LINE SPEED | COIL OD | CUTTING ACCURACY | CUTTING RANG | COIL OD |
| VMSL – 4×1650 | Hot Rolled Steel, Cold Rolled Steel, Galvanized Steel, Pre-Painted Steel, High Carbon Steel, Stainless Steel, Aluminum Steel, etc. | 1.5~4.0mm | Max 1650mm | ≤25t | Φ610mm~φ820mm | ±1.5mm | 0~30m/min | |||
| VMSL – 6×2000 | 1.5~6.0mm | Max 2000mm | ≤30t | Φ610mm~φ820mm | ||||||
| VMSL – 8×2500 | 4.0~8.0mm | Max 2500mm | ≤35t | Φ610mm~φ820mm |
