Valve Selector

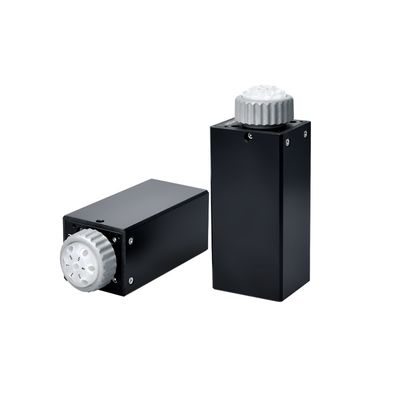

Valve selector SV06 was an upgraded multiport flow selector valve version based on SV01 in three aspects: a. Material of protective sleeve around valve head upgraded from stainless steel to PPS for corrosion resistance. b. Length of valve shorten from 203mm to 146mm for space-saving installation but mounting dimensions unchanged. c. The fluid control equipment own upgraded driver board to make software control more reliable and long lifetime.
Wetted material - PCTFE valve head and sapphire valve spool to create a fluid path of non-metal, anti-corrosion, anti-high temperature and wear resistance
Reset position - SV06 valve reset by CCW (non-changeable), rotor stay between port 1 and maximum port, public port disconnected with any port when valve at reset position
