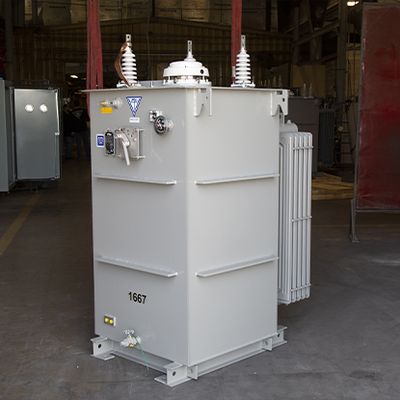

VanTran - Auto-Transformers
Do you need to interconnect networks with different operating voltages? VanTran auto-transformers will cover you, especially in growing residential and rural communities. Our customers choose VanTran’s single phase auto-transformers over the traditional three-phase padmount designs to avoid difficulties in easement, installation costs, network reliability and uptime.
Most popular related searches
arc flash labeling
gas sampling valve
pressure relief valve
level gauge
ground resistance
vacuum pressure gauge
pressure gauge
forced air
sampling valve
relief valve
Standard Features
- High Voltage NEMA 2 Hole Spade Bushings
- Low Voltage NEMA 4 Hole Spade Bushings
- Aluminum or Copper Windings
- Mineral Oil or Envirotemp™ Fluid
- 60 Hertz
- 65° Temperature Rise
- Pressure Relief Valve
- 1” Fill Plug with Schrader Valve
- Oil Level Gauge
- Oil Temperature Gauge
- Pressure Vacuum Gauge
- 1” Drain Valve with Oil Sampler
- External 5 Position No Load Tap Changer
- Anodized Aluminum Diagrammatic Name Plate
- ANSI 61 Gray Paint
Optional Features
- Non-Standard/Elevated BIL Adder
- Non-Standard Paint Color
- Forced Air Cooling Fans
- Removable Radiators
- 55° Temperature Rise
- 55°/65° Temperature Rise
- 50 Hertz Adder
- Watthour Meter Assembly
- Live Front Distribution Class Arresters
- Station/Intermediate Class Arresters
- BAY-O-NET Fuses
- Back-Up Fuses
- Dry Well Canister Fuses
- 1 Contact or Dual Contact Oil Level Gauge
- 1 Contact or Dual Contact Oil Temperature Gauge
- NEMA 3R Control Box
- NEMA 4 Control Box (Small)
- NEMA 4X Control Box (Stainless Steel)
- 120 VAC Control Cabinet Light
- 120 VAC Space Heater with Thermostat
- Drain/Breather
- Pressure and Vacuum Gauge with Bleeder
- Rapid Pressure Rise Relay w/ Seal in Relay
- Cover Mounted Pressure Relief Device
- Nitrogen Test Port/Gas Sampling Valve
- 2-Position LBOR Switch
- 4-Position LBOR Switch
- Delta-Wye Switch
- Infrared Viewing Windows
- Doorstops
- Removable Sill
- Electrostatic Shield between HV & LV
- U Channel Base
- Danger/Warning Sign
- Arc Flash Warning Sign
- Alarm Box Light
- Stainless Steel (304L or 316L) Tank, Base, ATC and Radiators
- Nitrogen Preservation System
- Neutral Grounding Resisters and High Resistance Grounds
