VapoLine - Model VapoFan 1.0 -Low Flow Mechanical Vapor Recompression (MVR) Blower

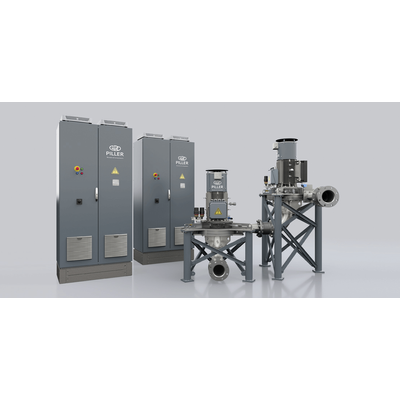

The VapoFan 1.0 is a vertically arranged low flow MVR blower, which is characterized by its compact construction and which is equipped with a high-speed motor and frequency-controlled drive technology. The Plug & Play system stands for short installation- and commissioning time.
PILLER offers a modular solution for low mass flow rates in MVR applications, thus expanding the product range with the VapoFan® 1.0, a product of our VapoLine®.
As a vapor compression unit, PILLER`s VapoFan® 1.0 is specifically designed for applications from approx. 200 to 9,000 kg/h mass flow with a temperature rise of 11 K in single-stage applications.
Our VapoFan® 1.0 stands out with its compact design for easy integration for optimizing existing plant operations or processes, as well as for implementing in new installations.
- Efficiency of up to 86 percent
- Designed for applications with mass flows from 200– 9,000 kg/h
- Serial connection of our VapoFans® 1.0 achieves highest temperature lifts
- New capabilities of energy and cost savings
- Radial blower design ensures reliable and smooth operation
- Fast implementation
- Minor maintenance requirements
The VapoFan® 1.0 is ideally suited for integration into a compact evaporator system: with minimal space requirements, independent installation locations and less energy consumption.
The perfectly harmonized drive unit is one of the reasons for the excellent efficiency. It consists of a synchronous motor specially developed by PILLER and a matching frequency converter in various capacities. A wide range of customer requirements can thus be covered and served.
The design of the VapoFan® 1.0 as a radial blower ensures reliable and smooth operation. The clearance dimensions between impeller and housing are sufficiently large to avoid any contact. Compared to rotary lobe blowers, PILLER VapoFans® 1.0 have an additional advantage: the flow is much more stable and the efficiencies remain constant within the wide operating range. The efficiency is up to 86% due to the ideal matching of motor and blower.
- Wide range of processes and applications
- High-performance in terms of efficiency, lifetime and temperature lift
- High quality materials are used for the requirements of the process industry
- Ready to equip, also for serial connection of VapoFans® with our VapoStation®
- Synchronous motor exclusively developed by PILLER
- Self-lubricating bearings, operating lifetime > 40,000h
- Impeller directly on motor shaft
- Up to 315 m/s circumferential speed
- 4 version of electric drive electronics: 37, 55, 90, 160 KW
- Up to 11 K temperature rise in single stage applications
- Shaft seal design for water/vapor buffer or vacuum suction
- Improved protection and monitoring by instrumentation
- Dimensions and weights for each VapoFan 1.0 unit
- Weight: approx. 400 kg - 700 kg
- Height: approx. 1.60 m - 2.30 m
- Width: approx. 1.50 m x 1.00 m
- Ambient temperature from -10 °C to 45 °C
- Casing design pressure: 0.1 bar(a) to 1.5 bar(a)
