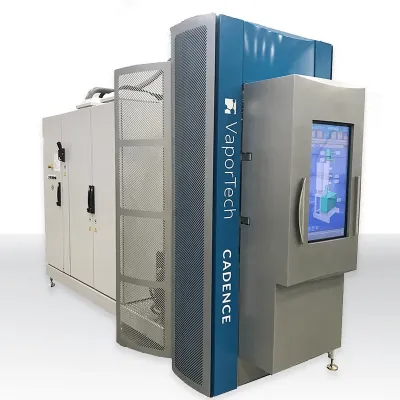

VaporTech - Model Cadence -Compact, Fast Magnetron Sputtering Deposition System for Functional Coatings
The Cadence system is a compact and efficient magnetron sputtering system specifically designed to deliver high-performance coatings across a variety of industrial applications. Utilizing the proprietary Remote Anode Assisted Magnetron Sputtering (RAAMS) process, this system achieves high deposition rates, enhancing wear resistance, reducing friction, and improving heat resistance and product longevity. The RAAMS method provides superior coating structure and hardness benefits compared to traditional PVD sputtering systems. This makes the Cadence system versatile, integrating easily into smaller manufacturing setups, and capable of handling multiple coating processes such as plasma-enhanced chemical vapor deposition (PECVD). It applies functional zirconium, titanium, chromium, and DLC coatings to tools, automotive parts, and precision components, ensuring high durability. The footprint is compact yet supports substantial loading, making it ideal for varied industrial needs.The Cadence system is a compact, fast RAAMS® magnetron sputter deposition machine designed for high-performance coatings.
Cadence® magnetron coating systems excel at quickly depositing functional coatings that dramatically improve your product’s wear resistance, reduce friction, increase heat resistance, and improve product life for many industrial and consumer products.
Using our proprietary RAAMS® (Remote Anode Assisted Magnetron Sputtering) process provides high deposition rates to shorten coating times and multiple coating sources to further increase deposition rates or deposit composite materials. RAAMS is a high-energy process that improves coating structure, hardness, and wear resistance compared to traditional PVD sputtering systems. Cadence systems are compact, fast, and easy for even smaller manufacturing operations to use and maintain.
Cadence sputter coating systems include the following key capabilities:
Compact
Small & easy to integrate into factory.
Versatile
Multiple coating technologies with various applications in one system.
Fast
Can be configured for rapid coating deposition.
System capacity
Coating Zone: 18 x 8 in. (45.7 x 20.3cm)
Loading capacity: 35 lbs. (15.9kg)
Size
Height: 96 in. (2.4m)
Width: 48 in. (1.2m)
Depth: 150 in. (3.8m)*
Coating technologies
- Remote Anode-Assisted Magnetron Sputtering (RAAMS™)
- Magnetron Sputtering
- Plasma-Enhanced Chemical Vapor Deposition (PE-CVD)
- Diamond-Like Carbon (DLC)
