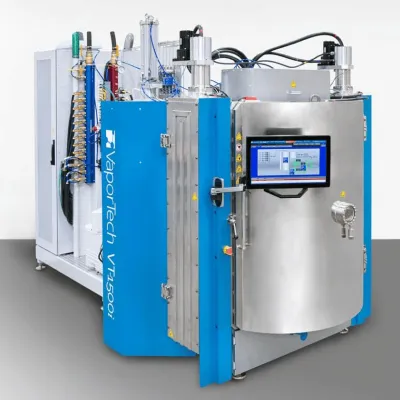

VaporTech - Model VT-1500i - High-Capacity Coating System
The VT-1500i™ is a mid-size model within the VaporTech® VTi Series, designed to deliver high-performance coatings with versatility in applications. This PVD and DLC coating system is equipped with optional magnetron sputtering sources. It can deposit a diverse range of metallic and non-metallic coatings, including diamond-like carbon (DLC), zirconium, titanium, and chromium. The system supports both cathodic arc and magnetron sputtering technologies, having a notable compact footprint of 2.0m x 4.4m, making it suitable for easy factory integration. Its high capacity allows it to handle extensive operations, with 10 large racks capable of coating parts up to 100 cm. The VT-1500i's flexible capabilities make it particularly beneficial for manufacturers in industries such as automotive, home hardware, and medical devices. It efficiently addresses the demand for durable, decorative, and functional coatings at a competitive cost per part.VT-1500i™: High-Capacity Cathodic Arc System with Optional Magnetron Sputtering
The VT-1500i™ is our mid-size VT-Series™ PVD & DLC coating system. Two optional magnetron sputtering sources deliver high-performance coatings.
The VT-1500i™ PVD & DLC coating system with optional magnetron sputtering deposits a broad range of bright and dark metallic colors as well as our diamond-like carbon (DLC) and functional, highly wear-resistant coatings.
The VT-1500i PVD system provides high throughput but in a very compact footprint. This unique system includes both cathodic arc and optional magnetron sputtering technologies in the same machine – up to 3 PVD sources. With the ability to coat parts up to 100 cm long and 10 high-capacity racks, the VT-1500i™ is a high volume, flexible, price-competitive coating system for manufacturers and coating service providers.
The VT-1500i PVD & DLC coating system with optional magnetron sputtering includes the following key capabilities:
Compact
Small footprint, easy to integrate into factory.
Simple
Easy to operate and maintain with many applications.
Low cost
Low per-part coating costs.
Part sizes
Coat large parts up to 100 cm long.
Flexibility
Available with cathodic arc and magnetron sputtering technologies.
Capacity
High capacity for large operations.
System capacity
- System footprint: 4.4m x 2.0m
- Coating area per batch: 7.98 m2
- Number of racks: 10
- Rack size: 100cm x 25.4cm Ø
Coating technologies
- Low-temperature cathodic arc vapor deposition (LTAVD®)
- Magnetron sputtering
Coating processes
- Physical vapor deposition (PVD)
- Plasma-enhanced chemical vapor deposition (PECVD) to create diamond-like carbon (DLC) coatings
Available coatings
- Pure, alloyed, or reacted zirconium, titanium, chromium, and carbon
