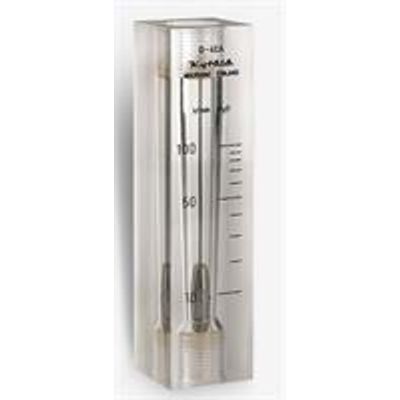

Kytola Instruments - Model D -Variable Area Flow Meter
Variable area flow meter Model D is a high quality acrylic flow meter. It is a reliable and easy to read instrument for measuring and monitoring liquid and gas flows. Typical applications are water treatment, sealing water measurements and gas flow measurements.
Most popular related searches
variable area flow meter
flow meter
gas flow monitoring
water treatment sealing
flow monitoring
water treatment
gas monitoring
water monitoring
reverse osmosis
flow modeling
- Gas flow measurement
- Environmental applications
- Reverse osmosis
- Sturdy duty construction
- Long lasting polymer body
- CNC machined and heat treated
- Pressure rated up to 435 psi
- Acrylic meter for water or air
- Flow range water 28 USGPH (100 LPM)
- Flow range air 100 SCFM (2500 NLPM)
- 3/4" BSP connections
- Maximum pressure 290 psi (20 bar)
- Maximum temperature 167°F (75°C)
- Scale for alternative gases and liquids
- Inductive low and/or high flow alarm
- NPT thread adapters with Viton or EPDM seals
- Custom calibration
- Body Acrylic (PMMA)
- Connections BSP 1”
- Maximum pressure 290 psi up to maximum temperature
- 440 psi @ 85°F
- Maximum temperature 167°F
- Weight 1.37 lb
- *Special construction upon request. Thread adapters must be used for NPT connections.
