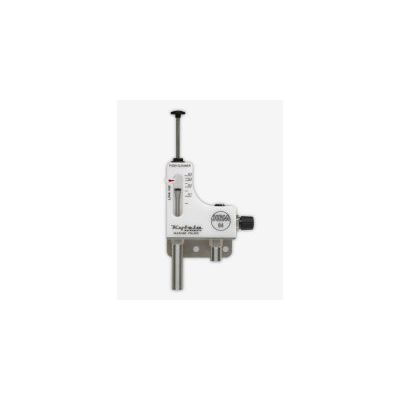

Kytola Instruments - Model KPM -Variable Area Flow Meters - Purge Meter
Purge meter model KPM is designed for industrial water purging applications and to withstand contaminated water. The KPM comes with a built-in flow tube cleaner and the strong and compact design ensures maximum resistance to external impact. Reliable flow measurement is based on a variable area metering principle using a free-floating float.
Most popular related searches
variable area flow meter
flow meter
compression fitting
contaminated water
industrial water
flow monitoring
PVDF tubing
water contamination
water industry
- Body : POM (*PVDF)
- Metering tube : Polysulfone (PSU)
- Metallic parts : AISI 316
- Float : AISI 329
- Seals : Viton (*EPDM)
- Maximum pressure : 290 psi (20 bar)
- Minimum temperature : -4°F (-20°C)
- Maximum temperature : 212°F (+100°C)
- Connections : Female threads or compression fittings for straight tube
- Weight : 2.6 lbs (1.2 kg)
