Kostal - Model INVEOR MP -Variable Frequency Drive
INVEOR MP – maximum efficiency, high performance and smart; Imagine if there was one variable frequency drive that was the perfect match for all your motors. A drive controller so fully and precisely equipped that your company only needs this one type of variable frequency drive. No one asks how this device works because everyone knows how to operate it. And it is also so powerful and accurate that it meets all your requirements with ease, including compliance with Ecodesign Directive guidelines. Would you like a variable frequency drive like this? Then discover the INVEOR MP from KOSTAL today.

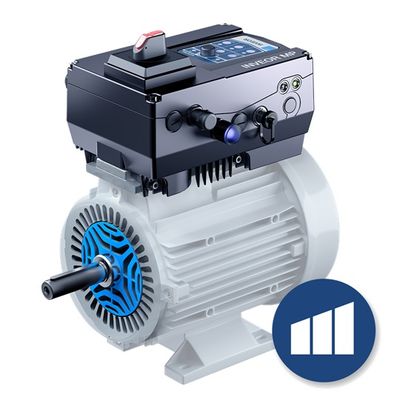

The KOSTAL INVEOR MP frequency inverter is the flagship of our Performance class: A motor-mounted 3-phase variable frequency drive in four sizes with up to 30 kW and a wide range of customisation options so that it fits every motor and every application.
With the INVEOR MP, you will find the highest control performance coupled with the best possible equipment. With its particularly smart control, it supports, for example, multi-pump operation with master and slave functionalities and has future-proof communication options such as support for the MQTT protocol.
- Customisable lid surface: Combine the INVEOR MP controls with your own. Integrate your own switches, indicators or potentiometers.
- Pluggable variable frequency drive connections: Thanks to Harting connections, you can connect the INVEOR MP to the supply voltage simply by plugging it in – easily and without tools. A QUICKON displacement connection is also included.
- Various application circuit boards: Tap into its diversity and adapt the INVEOR MP to your needs – with additional safety functions and fieldbus interfaces.
- Additional optional modules: Fully disconnect the supply voltage of your variable frequency drive with an additional main switch or integrate a brake module to control the motor brake.
The INVEOR MP frequency inverter uses the novel pulse injection process. This enables the rotor position of synchronous and synchronous reluctance motors to be determined without delicate components such as encoder sensors, making the KOSTAL INVEOR MP a powerful and robust variable frequency drive with which you can significantly expand the range of use of your electric motors and applications. The targeted way in which the pulse injection process performs control functions also reduces your energy consumption – with impressive performance parameters at the same time.
- 200 % overload: Use 200 % overload for up to 3 seconds if required. Or 150 % for a whole 60 seconds.
- Speed setting range of 1:200: Control your three-phase motors precisely and accurately, thanks to the optimised speed setting range and superlative control quality.
- Optimised torque control: get constant torque in all applications that need it (for example, extruder screws or winding applications).
- Control for all motor types: regulate the speed of all your motors. Including synchronous and synchronous reluctance motors of efficiency class IE5.
- Sensorless positioning: Start and stop your electric motors more precisely than ever before. With reduced susceptibility to faults at the same time.
- Multiple-pump operation: Control several pumps at the same time and avoid costly failures.
- 0.55 kW - 30 kW power: Choose the variable frequency drive with the right power for you from four assemblies – and only pay for what you really need.
