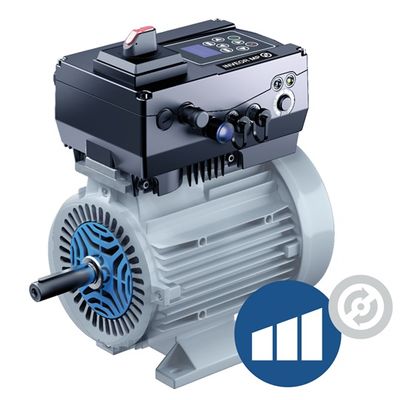

Kostal - Model INVEOR MPP -Variable Frequency Drive
INVEOR MPP - The performance frequency inverter with special pump functions; Regardless of the requirements of your application, the INVEOR MPP fulfils all these requirements in the best possible way and also saves costs. With the MPP, you can rely on the proven performance characteristics of the INVEOR frequency inverters. In this way, you achieve the highest efficiency with your application, remain maximally flexible and are optimally equipped for the future thanks to the support of all motor types. Find out more about the INVEOR MPP frequency inverter here.
Most popular related searches
variable frequency drive
performance variable frequency drive
temperature sensor
acceleration sensor
temperature monitoring
screw extruder
pump controller
digital temperature controller
resistivity monitor
process pump
As a member of the Performance family, the INVEOR MPP has all the features of this device class:
- 0.55 kW - 30 kW power: Choose the frequency inverter with the right power for you from four sizes - from 0.55 to 30 kW.
- 200 % overload: Use 200 % overload for up to 3 seconds if required. Or 150 % for a full 60 seconds.
- Speed control range of 1:200: Control your three-phase motors precisely and accurately - thanks to the optimised speed control range and the highest control quality.
- Control of all motor types: Control the speed of all your motors. Also of synchronous and synchronous reluctance motors of efficiency class IE5.
- Optimised torque control: Maintain constant torque in all applications that require it, such as extruder screws or winding applications.
- Low duty variant: Choose a smaller size with the same performance and benefit from lower costs.
- Pump display: Control based on pump-specific process variables. Pressure or flow rate directly adjustable.
- Smart sensor: acceleration sensor to detect vibrations in the application. Provision of data for predictive maintenance.
- Bidirectional IOs: bidirectional IOs can be assigned as inputs or outputs as desired. Maximum flexibility in the use of inputs and outputs.
- Temperature sensor input: possibility of connecting a PT1000 resistance temperature sensor. Temperature monitoring and control in the application.
The INVEOR MPP is equipped with a wide range of functions that are particularly required in pump applications. In addition to protective functions such as dry-running protection and blockage detection, the MPP also has a PID controller with standby function, which enables precise control to the desired process variable. This saves energy and reduces wear at the same time.
The INVEOR MPP is also perfectly designed for multi-pump operation. Up to 6 pumps can be controlled as needed in a master-slave network. This ensures a constant supply pressure even with fluctuating delivery quantities and increases the service life of the pumps. In addition, you benefit from a high degree of fail-safety and reliability.
