Watertronics - Variable Frequency Drive (VFD) Control Panel for Agriculture
The power savings of a VFD panel is just the start. Our VFD control panel takes the tech out of tech start and the field out of field supervision with a new level of quick start, control and cloud-based monitoring.
Most popular related searches
variable frequency drive controller
VFD control
variable frequency drive control panel
programmable logic controller
variable frequency drive
pressure regulator
submersible motor
variable frequency drive control
fan filter
pump system

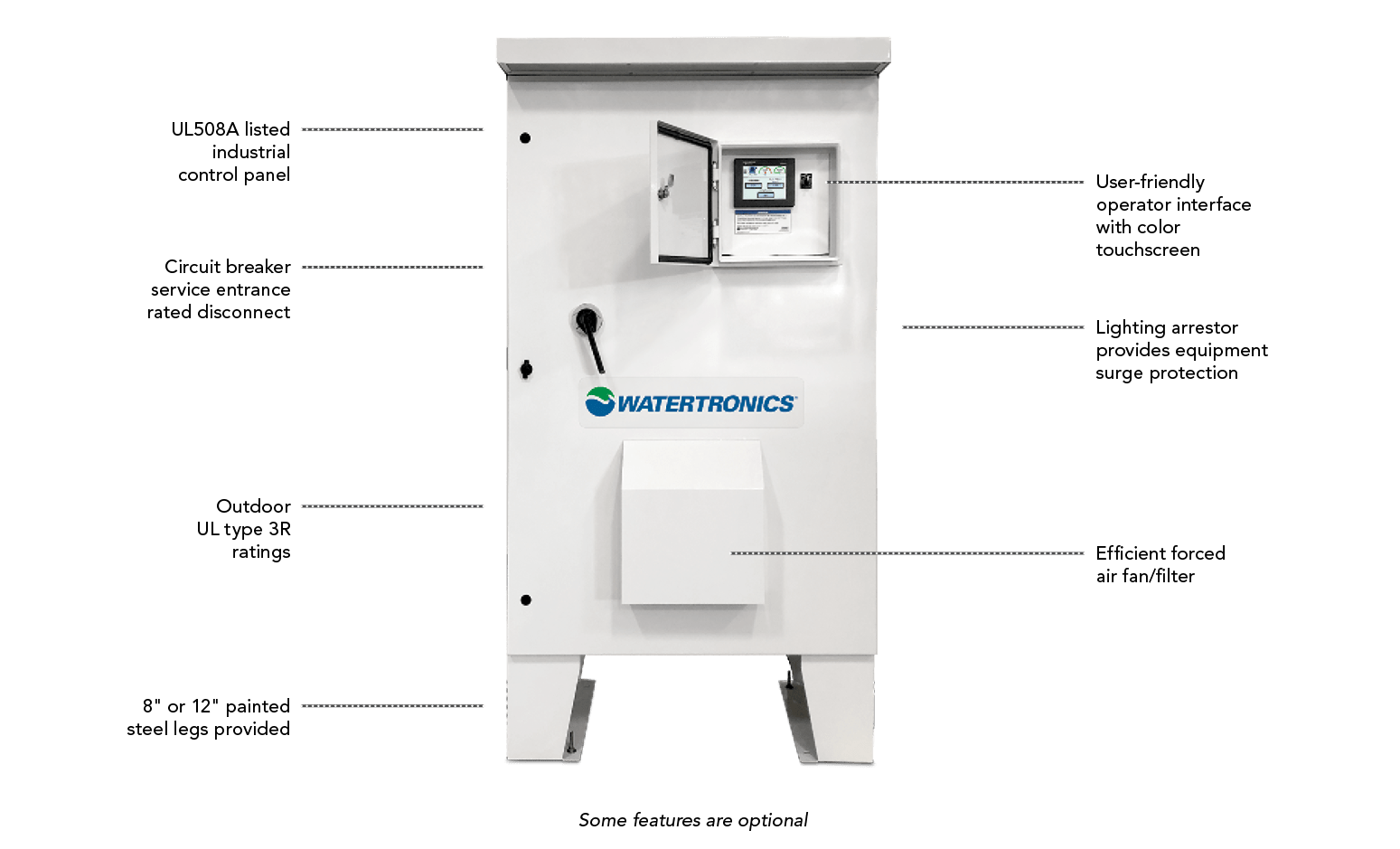

- Programmable logic controller (PLC) and door mounted color touchscreen
- Circuit breaker service entrance rated disconnect
- Fan/Filter panel cooling
- Log-in prevents unauthorized access
- N3R enclosure
- Control up to 3 lag pumps in standard software – advanced features including time delay, pressure drop and restart
- Lighting surge arrestor
- Screen-based speed potentiometer
- 2 isolated analog inputs for PID pressure regulation, level sensing, output pressure, input pressure and flow
- 100ka SCCR panel rating
- Remote start relay (24V AC/DC)
- 1 digital input flow
- Terminal blocks & wiring for utility shut down
- Temperature sensor – monitors interior panel temperature
- Thermostat control of fans (cooling fans operate when VFD isn’t running)
- Level sensing or suction pressure control via PLC touchsreen
- Pressure transducer kit included for pressure regulation
- Pump retirement – shut down on frequency, flow or amps/power
- Easy and quick servicing of intake and discharge air filters
- Output protection DV/DT filter for submersible motors
- 8″ or 12″ painted steel legs provided
- Watervision® cloud telemetry
- Motor winding heater circuitry
- Integrated harmonic filters with contactors
- RayCap StrikeSorb® surge arrestor kit
- Submersible motor panels with harmonic filters

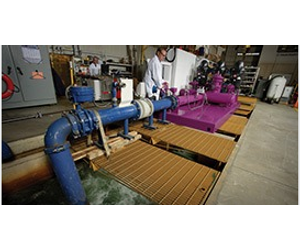

Dynamic Testing
Prior to delivery, eachstation is tested to site specific conditions for full dynamic flow, operation and 7-point vibration performance in our 88,000 gallon factory test pit.
WaterVision 2.0 Remote Telemetry
Stay connected and in control. View, manage, diagnose and make adjustments remotely anytime.

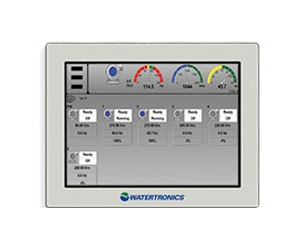

VirtualVision™
Easy-to-use VirtualVision™operator interfacefeatures full colortouchscreen displayfor monitoring alarms,changing pumpsequencing, recording/resetting water usageand more.
