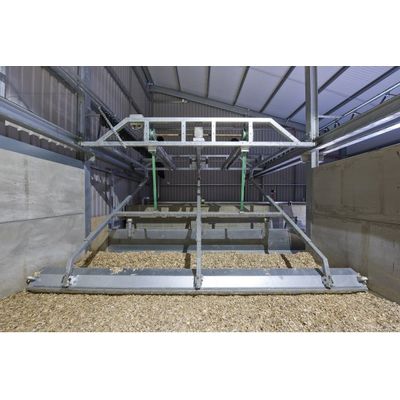

BHSL - Variable Speed Control Toploader for Industrial Applications

Carriage Dimensions:1074mm (H) X 3450 (L) X 6000mm – 5300mm (W). Toploader Weights:See “Weights”. Motors Manufacture:Nord. Motors Power Rating:Transverse Motor 4.0 Kw. Belt lifting Motor 2.2Kw. Motor Control:Variable speed Controllers. Sensors:IFM & Schneider. PLC:Allen Bradley. Throughput:4500Kg/Hour (Based on woodchip with 275kg/m³ Density). No. of Cycles/Hour:15 Cycles based on a 25 Meter Bunker. Toploader Operating Speeds:Carriage speed 0.3M/second. Belt Lifting Speed 0.4M/second. Toploader Steel Profile:See “Profile”. Toploader Finish:Galvanised.
