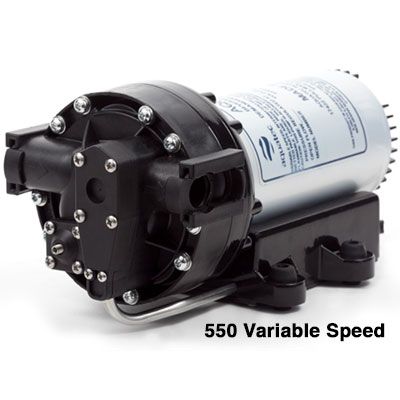

Aquajet - Model 55-AQUAJET-OES -Variable Speed Pump
Aquatec variable speed pumps are offered in 3-chamber and 5-chamber models. These pumps allow for constant pressure across multiple outlets via integrated electronic controls. Eliminates the need for pressurized tanks and pressure switches. Our patented 5-chamber diaphragm and piston design allows these pumps to operate at exceptionally quiet noise levels and with minimal pulsations. The smaller, 3-chamber diaphragm pumps offer additional options for space management.
MOTOR:
TYPE: 12 VDC, Permanent Magnet,
Totally Enclosed, Non-Ventilated
LEADS: 14 AWG, 12” Long, Black Negative, Red Positive.
TO AVOID PERMANENT ELECTRONIC DAMAGE,
DO NOT REVERSE POLARITY.
TEMP. LIMITS: See Heat Rise Graph
SPEED CONTROLLER: Factory Set to Approximately 6.5 Amps Max.
Thermally Protected to Avoid Component
Damage. Will Reset Automatically.
CAUTION: Exterior Surfaces (heat sink),
May Exceed 150°F After Only 15 Minutes of
Operation.
PUMP DESIGN: 5 Chamber Diaphragm Pump, Self Priming,
Capable of Being Run Dry
TYPICAL APPLICATION: Water Pressurization for RV and Marine
MATERIALS:
PUMP HOUSINGS: Polypropylene
CONTROLLER HOUSING: Nylon
VALVES: EPDM
DIAPHRAGM: Santoprene
FASTENERS: Stainless Steel
LIQUID TEMPERATURE: 140°F (60°C) Max.
PUMP CERTIFICATIONS: IAPMO, NSF
PRIMING CAPABILITIES: 10 Feet
