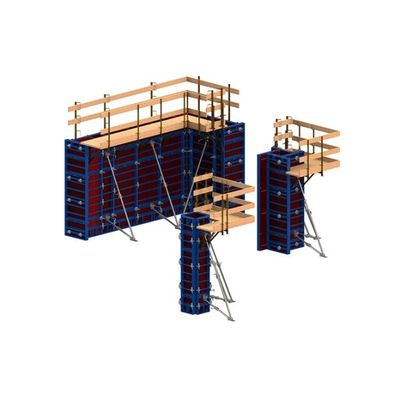

Variant - Model VARIMID -Framed Formwork

High load-bearing capacity:

• 60 kN/m2 pressure of fresh concrete up to 3.00 m;
• Can be vertically stacked up to 6.00 m with use of one joint;
• High quality film faced plywood with thickness of 15 mm. Film weight 240 g/m2.

Cost-effective:

• Manhandled formwork panels minimize use of a crane;
• High number of use cycles means lower follow-up expenses;
• Reduction of expenses by means of restoration and cleaning possibilities;
• Galvanized or powder-coated steel frames, for long service life;
• High quality of concrete surface minimizes finishing work.

Easy handling and planning:

• All the connectors and accessories are easily fixed into the slots and quickly tighten, consequently forming time is efficient and maximized;
• The ingeniously coordinated panel widths permit optimum adaptation to any structure.

Safe use:

Accessories such as — lifting hooks, wall brackets, supporting struts etc. make for save and easier handling of the system.

Areas of use of the Varimid system:

• Wall formwork;
• Column formwork;
• Foundation formwork.
