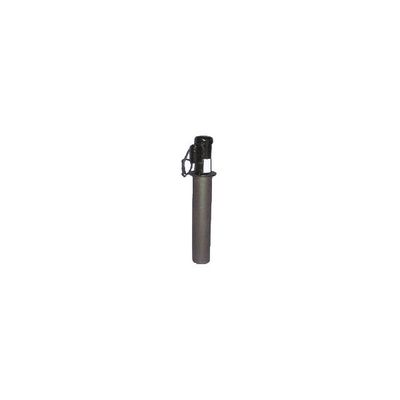

VBT - Model 200 Series -Vacuum Bubble Technology Aerator
The Vacuum Bubble Technology Aerator 200 is best used in applications with high strength waste from commercial operations such as RV and mobile home parks, small industrial sites, restaurants, etc. The VBT™ 200 Series is often used in conjunction with ATU`s and Advanced Treatment Systems as an effective pretreatment to significantly lower BOD/TSS concentrations.
Most popular related searches
bubble aeration system
bubble aeration
bubble aerator
aeration system
aerator
TSS concentration
BOD5
waste operator
total suspended particulate solids
- Cubic Feet/Minute(Air): 1.25
- Cubic Feet/Day (Air): 1,800
- Lb. O2/Day: 32*
- Lb. O2/Hp/Hour: 5.33*
- Approximate Flow(Gal/Day) @ 300 PPM BOD5: 6,500
* at 100% Oxygen
Motor Bluffton 1/4 Hp
Voltage 115v (1 Phase)
Full Load Amps 2.7/3.4
RPM 3250/2750
Hz 50/60
SF 1
A: Motor Body Diameter 4.25″
B: Motor Height 8.5″
C: Adapter Plate (Dia.) 6.5″
D: Air Tube Length 21.0″
E: Air Tube Diameter 4.50″
F: Min Water Line 10.00″
G: Max Water Line 14.00
