VBT - Model 600 Series -Vacuum Bubble Technology Aerator for Large Dairy and Hog Farming Lagoons
The Vacuum Bubble® Technology Aerator Model 600 is sized for large Dairy and Hog farming lagoons, large municipal sewage processing plants and large industrial applications. This unit has a flotation platform available as an option.
Most popular related searches
bubble aeration system
bubble aeration
bubble aerator
municipal sewage processing
aeration system
aerator
municipal sewage
municipal sewage plant
sewage plant
BOD5
- Cubic Feet/Minute(Air): 24
- Cubic Feet/Day (Air): 35,000
- Lb. O2/Day: 608*
- Lb. O2/Hp/Hour: 12.6*
- Approximate Flow(Gal/Day) @ 300 PPM BOD5: 180,000
* at 100% Oxygen
Motor WEG 3 Hp
- Voltage 230v/460v (3 Phase)
- Full Load Amps 7.42/3.71
- RPM 3460
- Hz 60/50
- SF 1.15
Motor WEG 2 Hp (Explosion Proof)
- Voltage 230v/460v (3 Phase)
- Full Load Amps 5.38/2.69
- RPM 3495/2800
- Hz 60/50
- SF 1.15

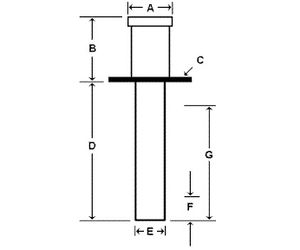

A: Motor Diameter 7.0″
B: Motor Height 11.00″
C: Motor Mt. (Square or Octagon) 14.0″
D: Air Tube Length 23.00″
E: Air Tube Diameter 12.00″
F: Min Water Line 6.00″
G: Max Water Line 17.00″
