VEICHI - Model SD700 Series - High ...

VEICHI - Model SD700 Series -High Performance Servo Drive

The VEICHI SD700 Series High Performance Servo Drive is engineered to deliver exceptional performance, reliability, and value for a wide range of industrial applications. This series integrates advanced servo capabilities with a user-friendly design to ensure optimal motion control. Featuring a speed loop response bandwidth up to 3kHz and a 23-bit absolute encoder with a communication speed of 2.5Mpps, the SD700 offers exceptional accuracy and stability. The system's automatic PID loop gain calculation and inertia identification enhance operational efficiency by minimizing setup time. Additionally, the servo drive supports multi-stage vibration control, effectively addressing resonance issues and ensuring smooth operations even with high-inertia loads. The SD700 is equipped with robust control algorithms capable of maintaining stable performance under varying load conditions. Full closed-loop mode support and low-frequency vibration control further improve precision and reduce mechanical errors. Its powerful PC software enables multi-channel monitoring and simplified parameter adjustments. The servo drive supports several communication protocols, including RS-485, EtherCAT, CANopen, and more, ensuring seamless integration with existing systems. Designed for diverse applications such as electronic manufacturing, packaging machinery, CNC equipment, and more, the VEICHI SD700 Series combines sophistication with simplicity to meet the demanding needs of modern industrial environments.

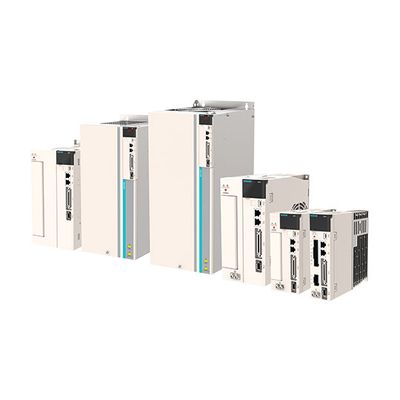

SD700 Series High Performance Servo Drive Overview

VEICHI SD700 series servo drives are high performance, high reliability, high quality, and cost-effective products to meet a variety of industrial environments and critical system applications and achieve the perfect combination of servo and program.

SD700 high-performance general-purpose servo——A complete fusion of sophistication and simplicity

The speed loop response bandwidth can reach 3kHz.
Using a 23-Bit absolute encoder, the communication speed can reach 2.5Mpps.
Bandwidth setting, automatically complete PID loop gain calculation.
Powerful PC software, multi-channel monitoring, easy to use.
Automatically complete inertia identification, loop gain, friction compensation, and other parameter settings.
Support multi-stage vibration control function, effectively limit resonance.
Robust control ensures smooth operation of loads with inertia within 30 times.
New structural appearance design, compact and space-saving.

3kHz speed loop response bandwidth

Through the unique current loop algorithm, the bandwidth of the speed loop is effectively increased, and the setting time is greatly shortened. The fastest setting time can reach 1ms, which improves production efficiency.

23-Bit absolute encoder

Standard 23-Bit multi-turn absolute encoder, single-turn up to 8388608 pulses, communication speed up to 2.5Mpps.
The positioning is more accurate, the low speed is more stable, and the power-off position is not lost.

Robust control

The new control theory algorithm is adopted to realize that even if the load moment of inertia changes within 30 times during the movement, there is no need to set the slave parameters to ensure smooth operation.
It can be used after installation. This function is widely used in manipulators.

Power Range
Power range : 0.1kW - 55kW, customized up to 250kW

Control Mode
Control mode : IGBT, PWM control and sine wave current drive mode

Feedback

Rotary motor combination ;

Serial communication encoders: 17-bit, 20-bit and 24-bit (absolute encoder)
Pulse encoder: provincial linear encoder-2500 lines
Rotary transformer type encoder

Environmental Conditions

Environment temperature : Environment temperature: -5℃-55℃ (reduce the use of ratings when it's 55℃-60℃)
Storage temperature: -20℃～85℃
Operating environment humidity: less 95% RH (without freezing or frosting)
Storage humidity: less 95% RH (without freezing or frosting)
Vibration resistance: 4.9m/s²
Impact resistance : 19.6m/s²
