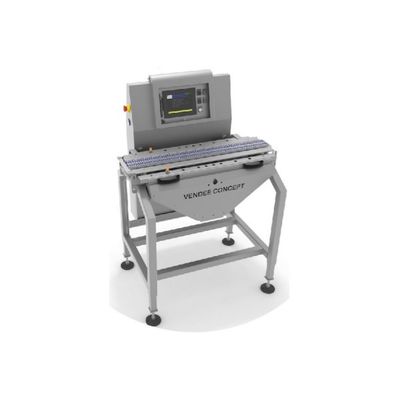

Vendée Concept - Model CALIBRA T QUARTZ -Checkweigher

A 100% stainless steel design, efficient and hygienic

All our machines are made entirely of stainless steel.

The design of the CALIBRA T QUARTZ sorter has been studied to be efficient, robust and adapted to the wet food sector. Thus, there is no « micro-mechanics », which makes the machine solid and easy to maintain.

The easy opening of the weighing bridge ensures simple access to the belt winding system. In addition to the hygienic design, the quality of the components guarantees resistance to jet cleaning (watertightness: IP 65).

In contrast to conventional checkweighers divided into 3 separate parts (stabilization – weighing – discharge), CALIBRA T QUARTZ checkweighers are designed with a single articulated belt on the same chassis.

Our tests have proved that this checkweigher can withstand temperatures ranging from 0 to 30°C.

These advantages result in a significant reduction in maintenance costs and an excellent price/performance ratio.

Several recognized references in the food industry trust us.

Very good weighing accuracy

We have obtained an approval that certifies conformity for classes X and Y.

The precision performance is such that we far surpass the legal requirements (LNE).

You are thus assured of obtaining very good weighing accuracy for your products while benefiting from a high rate (up to 250 products/minute).

• Output up to 250 products/minute
• Belt width: 102mm
• Weighing pan: 600mm
• Frame with openable weighing bridge for a rapid cleaning
• Management software offering a large panel of programs
• Control panel with 8” touch screen

• Ejection conveyor by blower or flipper
• Recuperation channel for ejected products
• Access pack Ubiquity
• Software Recup DC
• Supervisor
• Control software CALIBRA TO PC
