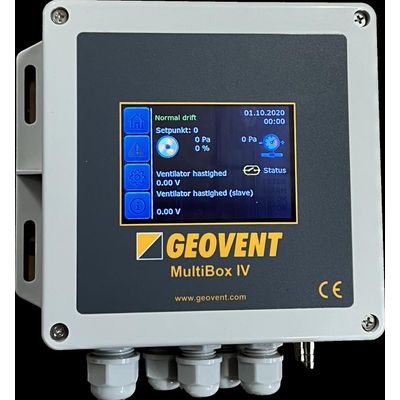

Geovent - Model MultiBox IV 13-701 -Ventilation Controller with Pressure Range
FromGeovent A/S
The MultiBox IV is a secures optimized ventilation solution considering both energy, CO2, and noise.
It sends service messages and define the startup time and output voltage.
MultiBox IV can be used for pressure range from 10 to 4000 Pa.
MultiBox IV is especially useful for dynamic pressure regulation in installations with throttle valve and/or a fan with frequency inverter.
The desired pressure or flow (pressure difference) is encoded as a fixed point. The built-in regulator will adjust the damper or frequency inverter. The alarm is activated if the regulation does not hold pressure/flow within the selected alarm limits.
Easy to install with touch screen
Speed regulation of fan with frequency inverter through an analog 0 to 10V DC signal
Control of 24V motor damper
On/off control of 24V motor damper
Acoustic and visual alarm
Pressure measurement and other practical information is shown on the display.
Built-in pressure transducer for the range from 10 to 4000 Pa.
230V connection
