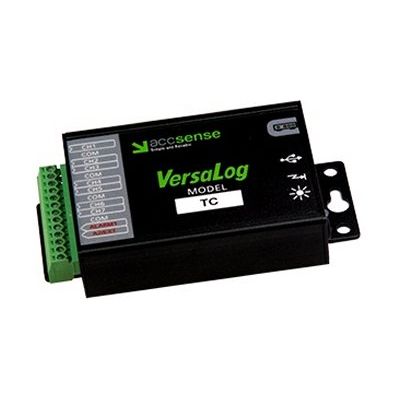

VersaLog - Model VL-TC -Temperature Data Logger
FromCAS DataLoggers
The VersaLog TC is an 8-channel, battery powered, stand-alone thermocouple data logger. It records the ambient temperature and the seven external thermocouple probes. Data is stored in non-volatile flash memory for later retrieval. VersaLog TC can also be used as a small voltage data logger with the input voltage range as small as -2 mV to +12 mV. Featuring an aluminum enclosure and conformal coating PCB, the logger has excellent performance in the harshest industrial environment. Powered by 16-bit ADC and programmable input range, the logger is well suited to science and laboratory applications where precise and accurate measurement is critical.
Most popular related searches
data logger
thermocouple data logger
temperature data logger
self-contained data logger
conformal coating system
thermocouple probe
channel cover
thermocouple
temperature logger
scientific laboratory
- The 16-bit analog-to-digital converter meets most high-resolution requirements.
- The 4-Mega-Byte Memory stores up to 2 million measurements.
- Thermocouple: Type E, N, J, K, T
- One on-board thermistor channel monitors ambient temperature. Seven range programmable thermocouple voltage input channels cover wide measurement requirements.
- Sampling rate: 20 milliseconds to 12 hours user selectable
- Can be accessed via USB, MODEM, or Ethernet connections with auto baud rate of up to 115 kbps.
- 10-year battery life
- Fast sampling mode
- Alarm and excitation output
