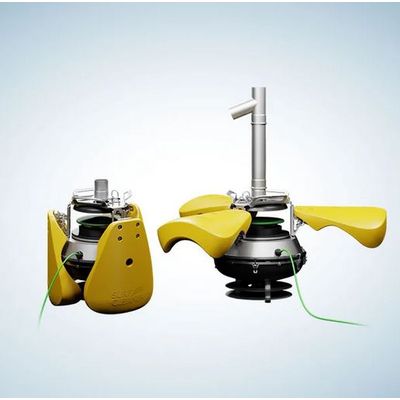

Surfcleaner - Model SCO 1000 -Versatile And Transportable Skimmer Separator
A versatile and transportable skimmer separator hybrid designed for inland and near-shore oil removal. The SCO 1000 is a hybrid skimmer separator designed for oil spills and oil separation in industrial environments. It is a simple yet effective solution for removing a wide variety of pollution – from sheen to heavy oil, and from sludge to solids. SCO 1000 is an energy efficient system that not only collects but separates and recovers pollution from the water surface. It is simple to deploy, run and maintain.
The SCO 1000 offers automatic removal, separation and recovery of oil, continuous unmanned/remote operation with minimal service requirements and quiet operation, ideal for locations in noise sensitive areas. Furthermore, it is ATEX/EX certified for Zone 0, making it safe to operate in environments with explosive atmospheres.
Weighing 26 kg with a diameter under 600 mm in transport mode, the SCO 1000 can be handled by one person. It can be powered on- and off-grid, from mains power 110/230V or 24V battery. It is controlled remotely via smartphone/tablet. With these features, the SCO 1000 is a very versatile solution for a wide range of applications in oil spill cleanup and oil separation.
- Portable, easy to move and handle by one person
- Handles different types of oil without adjustment, including thin sheens
- Requires no pump, no power-pack, no hydraulics, no pneumatics
- Recovers oil with a water content of less than 5%
General
- Separation capacity, incl. discharge: Up to 1,000 ltr/h (265 US gal/)
- Viscosity: Up to 500 cP
- Density: 0.75 to 0.92 kg/liter
- Layer thickness: >0.1 μm
- Maximum flow discharge:: 7,000 ltrs/h (1,800 US gal/h)
- Material: Stainless steel, Aluminum, Polyamide (Nylon), Polyethylene, Polyurethane, Nitrile Rubber
- Temperature limit – parts in air: 0 to 50° C (0 to 122° F)
- Temperature limit – parts in liquid: 0 to 40° C (0 to 104° F) – Higher temperatures on special order
Dimensions
- Minimum depth: 500 mm (20”)
- Operational Diameter: 1,371 mm (54”)
- Transport dimensions (Ø x h): 595 mm x 591 mm (24” x 24”)
- Weight: 26 kg (58 lbs)
- Discharge pipe diameter: 75 mm (3”)
Power and control
- Power: < 20 W average, one-phase, 120/230 V, 50/60 Hz, < 2 A
- Control system: Remote via smartphone/tablet (rugged industrialized tablet included)
- Connection cable length: 10 m (30 ft)
- Mains cable length: 10 m (30 ft)
- Connectivity: WiFi, Ethernet, 3G, 4G
- Protocols: MQTT, Modbus TCP
Options
- ATEX/EX: Zone 0 certificate
- Off-grid power: Battery, solar panel
