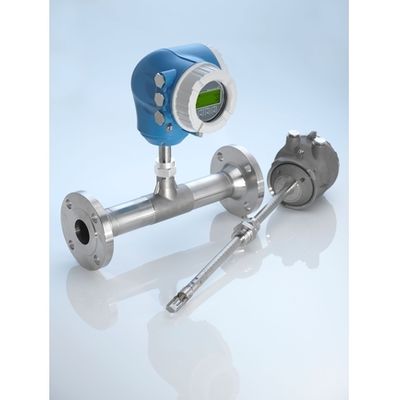

Proline - Model t-mass F/I 300/500 -Versatile Instrument for Pure Gases and Gas Mixtures

New with bidirectional gas measurement for all industries

• Wide range of applications:
• For utility and process gases (pure gases) and gas mixtures
• For consumption measurement, leak detection, process control, cost allocation and energy management
• Robust thermal sensor:
• Made of stainless steel for lowmaintenance, long-term operation
• Inline and insertion versions:
• DN 15 to 1500 (½ to 60")
• Reliable process monitoring:
• With warning function if condensate or pulsating flow occurs
• With reverse flow detection and bidirectional measurement
• Flexible and convenient programming: 22 standard gases selectable and corresponding gas mixtures with up to 8 components (special gases on request)
• High level of process control: premium measuring accuracy (±1.0%) and repeatability (±0.25%)
• Maximum safety thanks to SILcompliant device development (IEC 61508)
• Heartbeat Technology for diagnostics, monitoring and device verification without process interruption

The versatile instrument for pure gases and gas mixtures
Endress+Hauser has successfully installed over 100 000 t-mass flowmeters in compressed air and gas applications worldwide. Therefore, anyone who wants to record gas flows with proven and robust state-of-the-art measuring technology no longer has to make any compromises. The ingenious sensor design of t-mass and its one-of-a-kind monitoring functions leave nothing to be desired in terms of a comprehensive and reliable operation control. Whether the process conditions fluctuate slightly or heavily: t-mass measures gas flows with premium accuracy:

• Low-maintenance, long-term operation: robust industrial design for rough ambient conditions and for dirty and corrosive applications
• High operating reliability: Heartbeat Technology for self-diagnostics, process monitoring and device verification during operation
• Comprehensive process control: one-of-a-kind monitoring and alarm functions
• Flexible programming: 22 gases selectable, as well as mixtures of these gases (with up to 8 components)
• High flexibility during operation and configuration: Local display, webserver, WLAN, operating tools (FieldCare, HART handheld terminal) or digital communication (HART, Modbus RS485)
