Greenbank - Model B3 -Vertical Baler for Cardboard and Plastic

• Press Force: T
• Waste Volume: Small
• Feed Opening: WxH (mm) 770 x 460
• Bale Size: WxDxH (mm) 770 x 500 x 600
• Bale Weight (KG): 30-60
• Waste Types: Cardboard, Plastic Foil, Paper

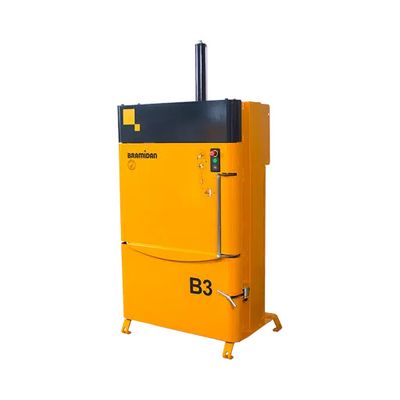

If you are looking to combine high compaction with a small footprint and low height, the B3 Baler is the right machine to further investigate. This modestly sized model at 940 x 715 x 1885mm will fit perfectly within smaller companies searching for more efficient waste solutions. The B3 produces bale weights of 30-50kg with cardboard and 40-60kg with plastic.

We appreciate that we offer a comprehensive range of vertical balers, our technical sales team are more than happy to help you find the right baler for you.

How do I use a vertical baler?

We’ve put together a handy video showing you the full process below, click launch video.

1. Recyclables such as plastic or cardboard are hand fed through until realistically full.
2. A full-light indicator tells you when the chamber is full.
3. Tie off the bale using strapping or wire and eject the finished bale.
4. Remove the bale and store until collection from your waste processor.

High compaction, low profile

• The B3 baler offers high compaction but with its low-profile can fit in very small spaces.

Safety first design

• From the loading to removal of bales the B3 Baler offers exceptional safety

A safety first low-profile baler

• This baler complies with EU Safety Standard EN16500
• Operates on single phase power supply
• The B3 has a small footprint and low height

• Bale weight cardboard (kg): 30-50
• Bale weight plastic foil (kg): 40-60
• Bale size WxDxH (mm: 770 x 500 x 600
• Press force (t): 3
• Power supply: 1x230V 50Hz 10A
• Motor (kW): 1,1
• Noise Level (dB): 65-68
• Cycle time avg. (sec): 24
• Dimensions WxDxH (mm): 975 x 715 x 1985
• Machine weight (kg): 290
• Feed opening WxH (mm): 770 x 460
