Watertronics - Vertical Centrifugal Single Stage Pump Station for Agriculture
High volume, skid mounted Vertical Centrifugal single stage pump station with simple touchscreen operation can be used for flooded suction, boost and lift applications. Our advanced pump logic uses actual pump curve data to provide intelligent sequencing for optimal wire-to-water efficiency. Engineered for continuous operation in challenging environments, the VC is reliable, rugged, and long-lasting. Your pump station arrives pre-packaged and factory tested, ready for quick installation and start-up.
Most popular related searches
vertical single stage pump
vertical centrifugal pump
vertical centrifuge
pump station
centrifugal pumping
centrifugal pump
pressure relief valve
isolation valve
pressure regulator
vertical pump

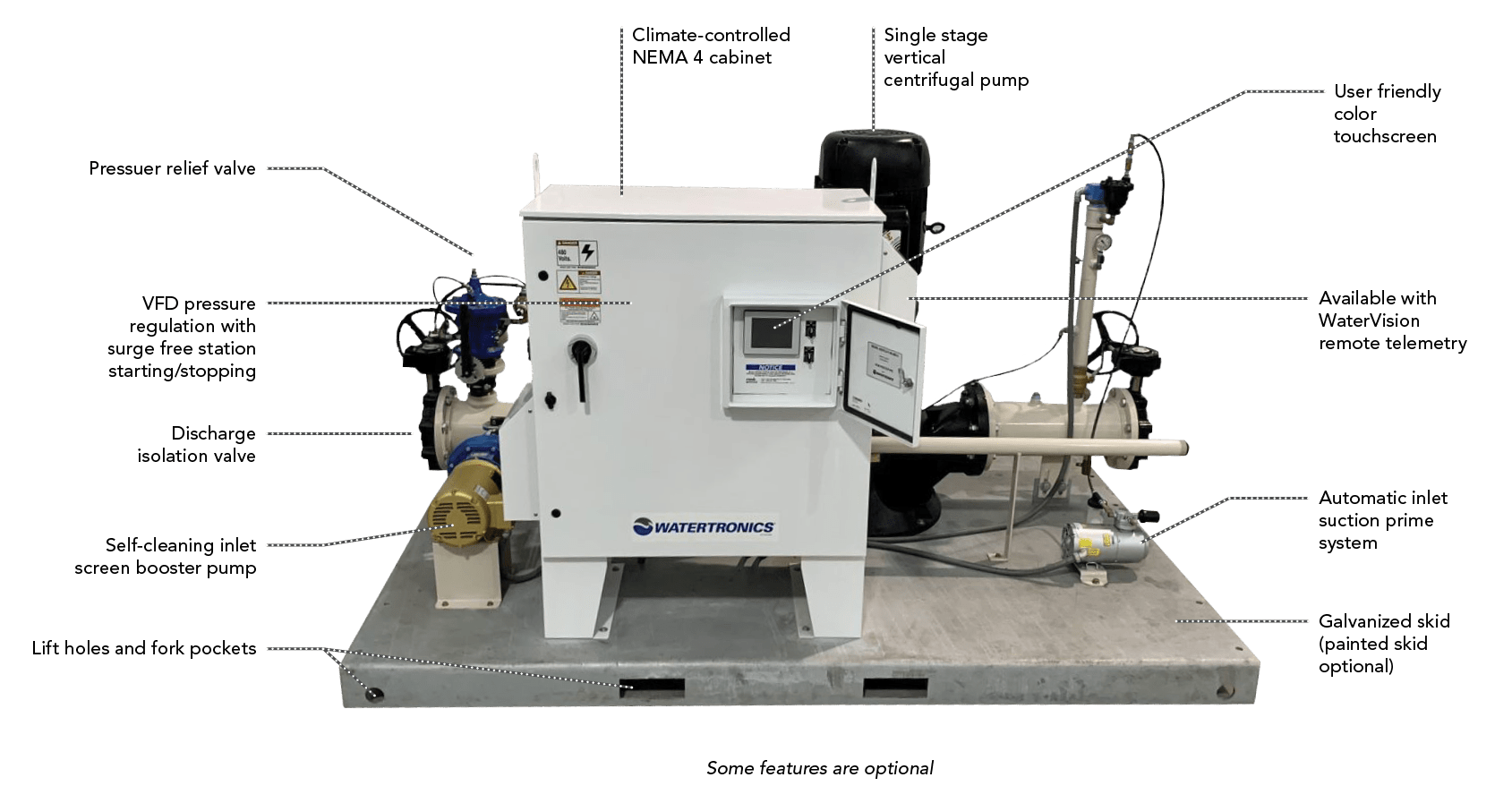

- Color touchscreen
- Galvanized skid for easy unloading and setup
- Single stage vertical Centrifugal pump
- Circuit breaker service entrance rated disconnect
- N3R enclosure
- VFD with proprietary PLC logic and -7 control platform
- Discharge isolation valve, pressure and operation testing prior to shipment
- Built to FCC Part 15 standards
- Full dynamic flow
- Self cleaning inlet screen booster pump
- Automatic inlet suction prime system
- Pressure relief valve
- Painted steel skid
- Magnetic Flowmeter
- Inlet Isolation Valve
- FieldNet or WaterVision remote telemetry

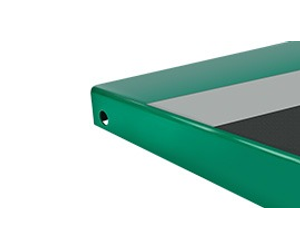

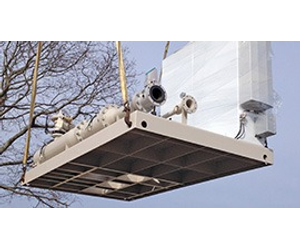

Skid Construction
Reinforced 3/8 in. formed steel base construction, with rounded seamlessedges to resist rustand corrosion. Flat skid surface provides ease of maintenance and reduces water and debris collection.
Painting
Three-step epoxy coat paint process for maximum durability:1) Steel grit blasting2) Two-part epoxy primer3) Polyurethane top coat is applied and baked to assure adhesion
Electronic Butterfly Valve (EBV)
EBV complements VFD controls by pressure regulating each across-the-line pump, eliminating surges, check valve slam, air entrainment and providing 100% backup pressure regulation in the event of a VFD fault.
