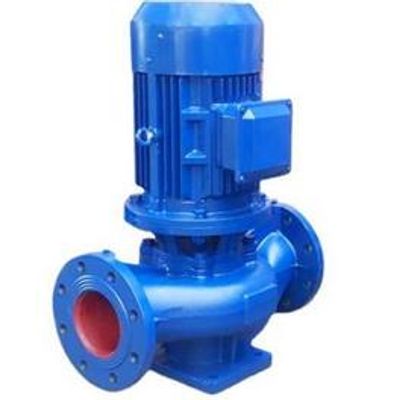

Hedun - Model ISG Series -Vertical Clean Water Centrifugal Pump
ISG Series Vertical Clean Water Centrifugal Pump also been called pipeline pump, centrifugal pump, pipeline centrifugal pump, single stage centrifugal pump, vertical pump, booster pump, hot water pump, circulating pump, pump, etc., IS an expert in this unit of science and technology personnel joint domestic pump chooses excellent hydraulic model, adopt IS type of centrifugal pump performance parameters, on the basis of the general vertical pump to design ingenious combination becomes.At the same time according to different use, such as temperature, medium on the basis of type ISG sent for pump, hot water pump, temperature and corrosive chemical pump, oil pump.ISG pipeline pump has the advantages of high efficiency and energy saving, low noise, reliable in performance.Conform to the latest national machinery JB/T53058-93 standard requirements, design and manufacture according to the international standard ISO2858 being adopted
ISG Series Vertical Clean Water Centrifugal Pump is used for delivering clean water and other liquids which have similar physical and chemical characteristics with clean water.
It is applicable to industrial and municipal water supply and drainage, pressurized water supply for high-rise buildings, garden spay-irrigation, fire fighting pressurization, long distance delivery, HAV and refrigeration circulation, bathroom pressurization and equipment matching; and the operating temperature is less than 90?
- ISG80-160(I)(A)(B)(C)
- ISG - Single-stage and single-suction piping centrifugal pump
- 80 - Nominal diameter of pump inlet and outlet (mm)
- 160 - Nominal diameter of impeller
- (I) - Classification of flow
- (A)- The first cutting of impeller
- (B) -The second cutting of impeller
- (C)- The third cutting of impeller
- ISG Series Vertical Clean Water Centrifugal Pump is vertical structure, import and export of diameter is the same, and in the same line, like valve installed on the line, compact appearance beautiful, cover an area of an area small, low construction investment, such as plus a shield can be placed in the outdoor use.
- installed directly on the extension of the motor shaft, impeller, short axial dimensions, compact structure, the pump and motor bearing reasonable configuration, can effectively balance the radial and axial load of pump operation, so as to ensure the smooth operation of the pump, small vibration, low noise.
- adopting the combination of mechanical seal or mechanical seal shaft seal adopts imported mechanical seal and sealing ring, medium, high temperature resistant titanium alloy using hard alloy material, wear-resistant sealing, can effectively extend the service life of mechanical seal.
- convenient installation and maintenance, do not need to open pipe road system, as long as the discharge of couplet of pump rotor nut can be pulled out all the parts.
- ISG Series Vertical Clean Water Centrifugal Pump can be used according to the requirements of flow and head need to adopt pump series, in parallel operation mode.
- ISG Series Vertical Clean Water Centrifugal Pump can be used according to the requirement of the piping layout of vertical and horizontal pump type installation.
