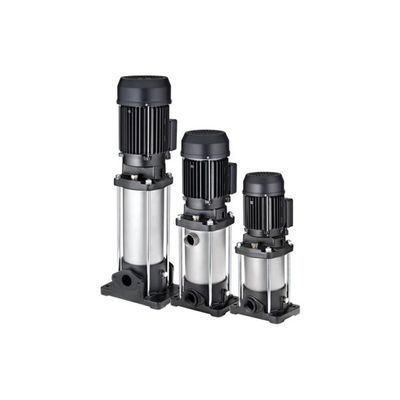

Franklin Electric - Model EM Series -Vertical Close Coupled Multistage Pumps
The EM Series, vertical close coupled multistage pump is designed to meet your pressure boosting needs. The compact, robust design ensures high performance in a wide variety of applications. The EM Series is offered in three flow rates and different power sizes in 1-phase or 3-phase to make sure you have the right pump to fit your application.
Most popular related searches
multistage pump
close coupled pump
water distribution pressure
domestic water supply
vertical multistage pump
EN standard
coupled pump
water supply
rainwater collection
air conditioning
- Small domestic and industrial systems / Domestic water supply
- Water distribution / pressure boosting
- Irrigation / Gardening / Sprinklers / Rainwater collection
- Industrial plants / Wash down unit
- Cooling and chilling / Heating and conditioning / Air conditioning systems
- Pumping of clear non-loaded fluids
- Other various installations
- Compact close coupled design, robust and corrosion resistant / Superior efficiency and performances
- Floating neck ring in PPS
- Heavy duty oversize motor shaft
- Impellers and diffusers are made of stainless steel in order to achieve durability
- Easy maintenance
- Strong and leak-proof motor ball bearing fitted in the motor
- Mechanical seal Type E0 = Carbon graphite / Ceramic alumina / EPDM
- Flow:
- up to 14 m³/h at 50 Hz
- up to 17 m³/h at 60 Hz
- Head: up to 104 m at 50 Hz and 60 Hz
- Discharge and suction port: threaded or oval connections
- Maximum working pressure: 12 bar
- Direction of rotation: clockwise looking at the pump from the top down
- Maximum ambient temperature: 40 °C
- Liquid temperature range:
- Minimum: -15 °C
- Maximum: +90 °C for domestic use (uses covered by CEI EN standard 60335-2-41); +110 °C only for industrial use (uses other than those covered by CEI EN standard 60335-2-41)
- The hydraulic characteristics are guaranteed, according to ISO standard 9906:2012, grade 3B
- Single-phase
- Three-phase motors efficiency class IE3
- Asynchronous, TEFC (totally enclosed, fan-cooled)
- 2 pole
- Protection degree: IPX5
- Insulation class: F
