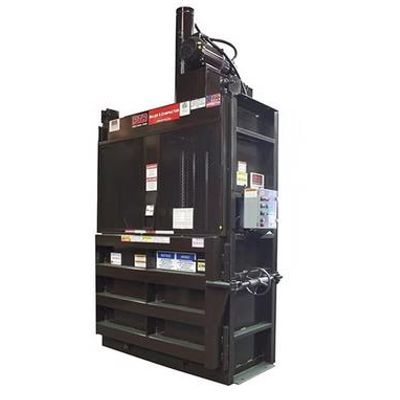

PTR - Model 5000HD -Vertical Downstroke Baler
This Extremely Rugged, High Density, Heavy Duty Vertical Baler provides an excellent balance of power and reliability for recyclers today.
Most popular related searches
vertical baler
vertical downstroke baler
baler
downstroke baler
high density vertical baler
recyclables baling
high density baler
chamber baler
- Overall (Width x Depth x Height) : 79" xW at 152"
- Feed Height : 33"
- Baler Chamber (Depth x Height) : 30" x 48"
- Load Opening (Width x Height) : 60"x 26"
- Cylinder Bore : 7” x 4”
- Rod Stroke : 48"
- Motor :20 hp
- Cycle Time : 54 sec
- Systems Pressure : 2100 - 2800 psi
- Platen Force : 80,800 lbs
- Control Voltage : 110-120 VAC
- Electrical Motor : 3 Phase 208/230/ 460
- Bale Width : 60"
- Bale Depth : 30"
- Bale Height : 48"
- Bale Weight : 1,100 to 2,000 lbs
