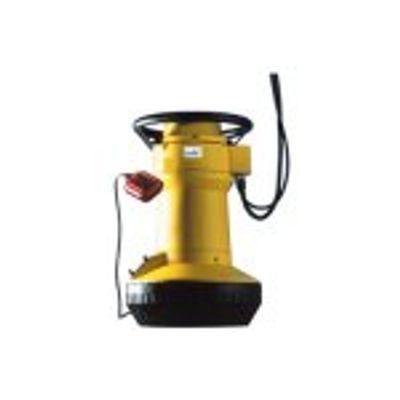

KSB - Model Ama-Drainer 80 / 100 -Vertical, Fully Floodable Submersible Motor Pump

Automatic drainage of pits, shafts, yards and cellars subject to a flooding risk, lowering of surface water levels, dewatering, drainage of underground passages, water extraction from rivers and reservoirs.

• Type of impeller : Free flow impeller; Open
• Maximum drive rating : 7, 50 kW
• Impeller material (EN standard) : JL1040
• Type of bearing : Ball bearings
• Drive frequency : 50 Hz
• Maximum speed of rotation : 2. 800 1/min
• Maximum flow rate : 130 m³/h
• Casing material (EN standard) : JL1040
• No. of impeller entries : Single entry
• Casing material : Cast iron
• Suction characteristics : Self- priming
• Drive voltage : Low voltage
• eClass assignment : 36410101; 36410100;36410000
• Pump set location : Wet well
• Explosion protection : OHNE
• Max. permissible fluid temperature : 50 002
• UNSPSC classification : 4015150300
• Free passage : 12 mm
• Main applications : Waste water / sewage;Building services;Water
• Type of installation : Transportable; Stationary
• Type of connection : Thread
• Type of lubrication : Grease lubrication
• Type of drive : Electric motor
• Installation position : Vertical
• Shaft material (EN standard) : 1. 4021
• Type of coupling : Direct
• Shaft seal type : Mechanical seal
• Drive : Electric motor
• Maximum head : 26, 00 m
• Minimum head : 4, 50 m
• Connection to power supply : 400 V, 3~
