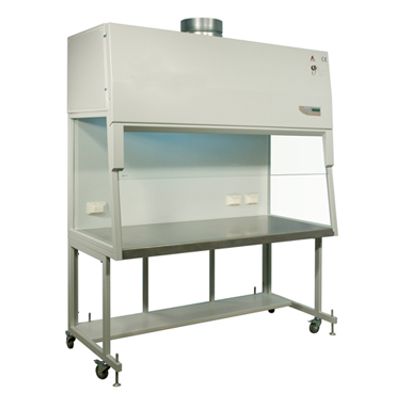

Model Laminar Air Flow Bench -Vertical & Horizontal Laminar Air Flow Cabinets

A laminar air flow cabinet maintains a unidirectional flow of HEPA-filtered air over the work area and protects the working environment from dust and other air-born particulates. The flow can be horizontal (parallel to the work surface) or vertical (from top to the work surface). Both the air flow types have their own significance in research. The question, where to use horizontal air flow cabinet or vertical air flow cabinet, this choice solely depends upon the requirements of applications.

Laminar air flow or laminar Hood consists of stainless Steel Cabinet, Filter pad or pre-filter, HEPA Filter, Fan or blower, UV Lamp, Working stations Fluorescent lamp etc. These important parts perform individual functions during its operation. The main function of laminar air flow is to remove all airborne contaminations for maintaining sterile conditions. This process takes place in the following manner:

• 1. The cabinet uses inwards flow of air passed through one or more HEPA filters for creating sterile environment.
• 2. The air taken inside via a filtration system is exhausted across the work surface.
• 3. Primarily, air is passed through the filter pad that ensures the streamlined flow of air into the cabinet.
• 4. After that, the blower directs the air towards HEPA filters.
• 5. The HEPA filters capture the fungi, bacteria or other particulate materials and make air circulating inside the cabinet particulate-free.
• 6. Some effluent air passes at the bottom rear end of the cabinet via perforation while most of the air passes over the working bench (it is the area encompassing burner, loops and culture plates inside the cabinet where all processes take place) towards the face of the operator.

As mentioned above, in a horizontal air flow cabinet, filtered air blows across the work zone in horizontal direction; this constant flow of air provides material and product protection. Whereas, in a vertical laminar air flow cabinet, filtered air blows on the work zone and leaves through the holes in the base. As compared to horizontal type, vertical flow cabinet can provide greater operator protection. Furthermore, it is user preference that decides which type of laminar air flow cabinet should use.

We are ISO & CE Certified laminar air flow Manufacturers in India, suppliers in Delhi NCR, India & Overseas. We have more than 35 Years of manufacturing of laminar Hood or tissue culture hood in India. These LAF cabinets are available in 5 standard sizes that can be further customized to meet unique requirements of our customers. These cabinets are well suited for cell culture and microbiological applications that require class 100 air quality.

Our laminar air flow cabinets are modern in design and features certified quality construction; with options and accessories these prove to be most efficient laminar air flow cabinets available on the Indian market today. Our in-house manufacturing and fabrication facilities provide benefit of any kind of customization that our customers may need. In addition to cover all Indian market, these laminar air flow cabinets are also exported worldwide. To know price list and other important details, please email us your query and our sales team will coordinate with you till you get 100% satisfaction.

• HEPA filtration unit provides Class 100 air quality
• Meet US Federal Standard 209 B (BS 5295)
• Optional UV lamp to sterilize work zone
• Stainless steel work table
• Low noise level
• Made from branded parts (blower etc.)
• High airflow capacity
• Easy to change filters
