AirClean - Vertical Laminar Flow Workstation

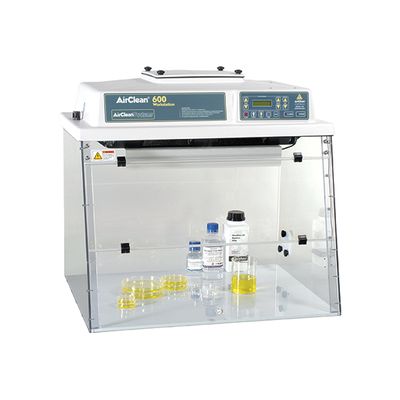

AirClean Systems AC600 Series vertical laminar flow workstations are ideal for applications that are not hazardous to the operator but require a clean work area. The compact, light-weight design allows for multiple "clean zones" within a laboratory. The vertical laminar flow hood provides clean, Class 100 laminar flow air for process protection by utilizing two-stage filtration. Room air first passes through an electrostatically charged pre-filter followed by a HEPA filter resulting in ISO 5 clean air. AirClean Systems vertical laminar flow workstations have been independently certified to meet or exceed applicable clean bench standards.
- UVTect microprocessor controller
- ISO 5 vertical laminar flow air
- Clear polycarbonate shell for 360° visibility
- Polypropylene construction for chemical resistance. The result: NO RUST
- Integral fluorescent lighting
- Available in standard height or tall version
- No ductwork required
- No installation required - plugs directly into a standard 110V or 220V electrical outlet
- Lab event timer
- Filter safety lockout to ensure correct filter replacement
- Filter and electronics are located above the workspace, eliminating the chance of a chemical spill entering these sensitive areas
- Shipped fully assembled
- Tested to UL 61010-1,CSA C22.2 No. 61010-1, and EN 61326-1
- ISO 5 tested
- Real time monitoring of installed filtration bed

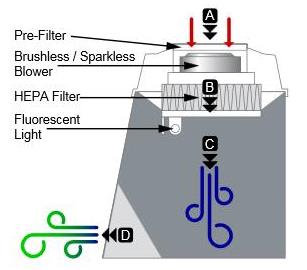

A Room air enters and is cleaned via electrostatic pre-filtration
B Air then moves downward through the HEPA filter.
C Clean vertical laminar flow air enters the chamber.
D Clean air is recirculated into the room.
- Access port for electrical cords
- IV bar
- ULPA filter
- Sturdy cart/trolley with locking casters for mobility
- Polypropylene laboratory sinks
