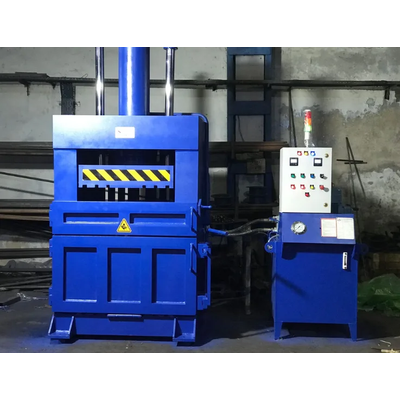

Hysan - Vertical Manual Tie Baler
Hysan Vertical Manual Tie Baler is a space-efficient, economical waste compaction solution designed for small-to-medium businesses that need to bale recyclables like cardboard, paper, plastics, and textiles. In Hysan vertical Balers – The bales are tied with steel wire or plastic ropes which manually slots in the pressing block. This allows the wire to easily pass through the material. Chain-lever arrangement is provided at the bottom to facilitate ejection of the bundle / bale when cylinder moves upward.
Most popular related searches
manual tie baler
vertical baler
waste compactor solution
PET bottle baler
PET bottle
baler
bottle baler
wet waste
hazardous materials
waste compactor
Core Specifications & Features for Vertical manual Tying Baler:
1. Compression Force:
- Typically 10-60 tons (varies by model).
- Hydraulic system ensures high-density bales.
- Common sizes: 500×400×300mm to 800×600×500mm.
- Adjustable via removable side panels.
- Cardboard (OCC), newspaper, PET bottles, foam, fabric scraps.
- Not suitable for: Metals, wet waste, hazardous materials.
- Operator inserts steel wires/PP straps through pre-designed channels.
- Typical bale weight: 30-150kg (depends on material density).
- 3-phase 380V or single-phase 220V options.
- 5.5kW to 11kW motor power.
