Canadyne PermaBoom - Model HD -Vertical Membrane Constructed of Heavy-Duty PVC-Coated Polyester Belting

SHARE

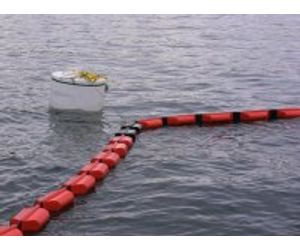

PermaBoom HD features a vertical membrane constructed of heavy-duty PVC-coated polyester belting. This membrane serves as both the draft and freeboard of the boom, preventing the passage of floating pollutants and debris.

Most popular related searches
tidal compensator
heavy boom
permanent boom
sealing system
containment boom
floating boom
permanent containment boom
floating waste
belt conveyor
resistivity system
  • Boom Type: Fence, Solid Floatation (Permanent)
  • Recommended Conditions: Marine Terminals, Refineries, Ports, Power plants

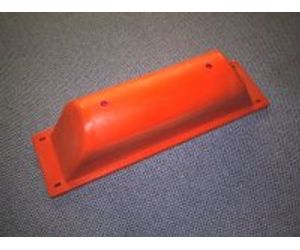

Attached to either side of the membrane are solid floats that provide buoyancy to the boom.  Floats are constructed of one-piece rotational molded polyethylene and offer a high degree of buoyancy, stability and durability.  Foam filling of the floats offers added insurance against loss of buoyancy should floats become damaged due to impact.

Boom is designed for continuous, long-term use, and is of rugged construction, complete with UV and marine growth inhibitors.

  • Heavy duty boom membrane, minimal maintenance requirements
  • Rotary molded, foam filled heavy duty boom floats
  • Accessories include tidal compensators, and dock seal systems
  • Corrosion resistant ASTM style marine grade aluminum connectors
  • Custom sizes and optional ballast (lead or chain) available

  • Boom fabric is heavy duty PVC-coated polyester conveyor belting, black
  • Standard fabric weight 170 oz/yd2 (5700 gsm), 0.20 inch (5mm) thick
  • Standard fabric strength 1500 lbs/inch (267 kg/cm)
  • Fabric has UV and marine growth inhibitors, chemical resistant
  • Fully enclosed, rotary molded high density polyethylene float shells filled with closed cell polyurethane foam filling, impact resistant, unsinkable
  • Floats are bolted through molded elliptical holes to allow stretching of boom skirt under tension
  • Float weight 8 lbs (3.6 kg), 34.75 x 9.75 x 9.25 in (891 x 248 x 235 mm)
  • 304 Stainless Steel (SS) float attachment and connector hardware
  • Floats come disassembled from belting to minimize freight volume
  • Full factory support for spares, repairs and technical assistance
  • Upgrade to heavier PVC fabric for increased abrasion resistance
  • ASTM, Stainless Steel (SS) Hinge and Pin, or bolted connections
  • Custom sizes, section lengths

Recommended Accessories

  • Towing Bridle and Tow Line
  • Anchor Assembly systems
  • Tidal compensators and dock seals
