Walrus Pump Co., Ltd.
Products
Walrus - Model TPK Series - TPK2T11-8 - ...

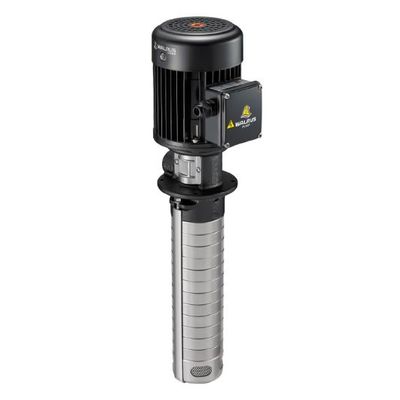

Walrus - Model TPK Series - TPK2T11-8 -Vertical Multistage Centrifugal Immersible Pump

TPK Series is vertical multistage centrifugal pump, designed for industrial use, specially for machine tools, to carry fluids such as water, coolant, light oil and other clean, non aggressive matters.

Most popular related searches

vertical multistage centrifugal pump

multistage centrifugal pump

vertical multistage pump

vertical centrifugal pump

Construction:

Submersible vertical multistage centrifugal pump, self-priming, stub pump shaft per coupling connect with motor. Main working parts made by stainless steel.

Motor

Nominal speed: 3500 / 2900 rpm
Frequency range: 60 / 50 Hz
Voltage code: 220V/380V
Enclosed class: IP54
Insulation class: F.

Operating Condiction

Ambient temperature: Max. +40°C
Liquid temperature rang: +0°C ~ +90°C
Operating pressure: Max. 10 kg/cm²
Submerged depth: Min. 65mm
