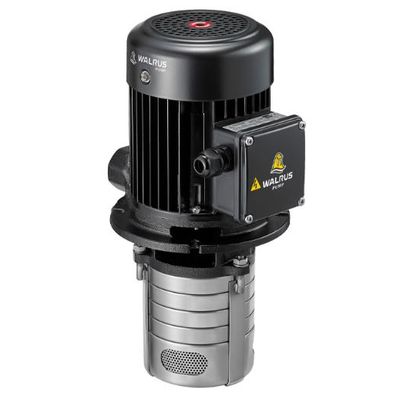

Walrus - Model TPHK Series - TPHK2T4-4 -Vertical Multistage Centrifugal Pump
The WALRUS TPHK Series is vertical multistage centrifugal pump, designed for industrial use, specially for machine tools, to carry fluids such as water, coolant, light oil and other clean, non aggressive matters:
Most popular related searches
vertical multistage centrifugal pump
multistage centrifugal pump
vertical multistage pump
vertical centrifugal pump
centrifugal pumping
centrifugal pump
vertical centrifuge
multistage pump
vertical pump
centrifuge
Application
The WALRUS TPHK Series is vertical multistage centrifugal pump, designed for industrial use, specially for machine tools, to carry fluids such as water, coolant, light oil and other clean, non aggressive matters.
Pump Construction
Immersible vertical multistage centrifugal pump, co-axial pump/motor design, impellers mounted on extended motor shaft. Main working parts made by stainless steel
Motor
- Nominal Speed: 2900 / 3500 rpm
- Frequency: 50 / 60 Hz
- Voltage: 220V/380V
- Enclosure Class: IP54
- Insulation Class: F.
Operating Condition
- Ambient Temperature: Max. +40°C
- Liquid Temperature Range: +0°C ~ +90°C
- Operating Pressure: Max. 10 kg/cm²
- Submerged depth: Min. 65mm
