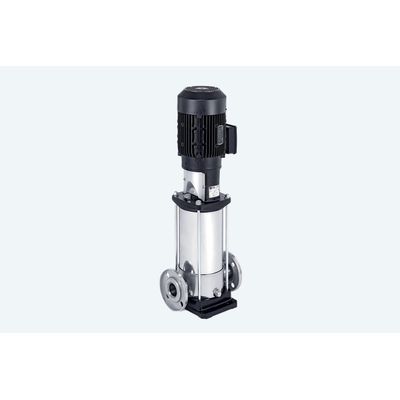

Ebara - Model EVMS Series -Vertical Multistage Pumps
EBARA new vertical multistage pumps model EVMSU – are manufactured with the highest standards of quality to achieve reliable operating performance through strict technical evaluation criteria and control programs that involve the whole manufacturing process.
Most popular related searches
vertical multistage pump
multistage pump
cartridge mechanical seal
vertical pump
produced water
tungsten carbide
boiler feed
washing system
water circulator
fire fighting
- Optionally available Low NPSH 1st stage impeller significantly reduces NPSH requirements
- Standard NEMA motor sizes
- Low axial thrust impeller enables long motor bearing life
- Air vent in casing cover allows proper venting preventing air entrapment and dry run
- Fill port in casing cover allows for water fill, as well as installation of sensors, gauges, and other measuring devices
- Liner ring is a self-aligning, floating design constructed to prevent swelling at high temperatures
- Tungsten carbide lower pump bearings and sleeves are standard construction for all services, providing maximum operating life
- Direct drive pump and motor shafts are keyed for positive, reliable power transmission with no adjustments necessary
- “Flexible” floating outer casing allows for thermal expansion in hot water applications, preventing deformation due to pressure fluctuations
- Square-edge four spline shaft provides positive location and drive of impellers, eliminating wear
- Dimensions & flanges – installation is to market accepted dimensions for easy upgrade of existing installations
- Piping connection options include Fixed ANSI compatible flange, Oval flange, Loose ANSI compatible flange, victaulic, and clamp connections
- Mechanical seal – Silicon Carbide/Carbon/Viton mechanical shaft seal. Cartridge mechanical seal design enables replacement without disassembling the motor bracket
- Suction Size: 1 1/4″ to 4″ ANSI
- Discharge Size: 1 1/4″ to 4″ ANSI
- Range of HP: 1/2 to 60 HP
- Capacity: 3 to 607 GPM
- Head: 24 to 930 Ft.
- Working pressure: 435 PSI (30 Bar) max. (please refer to the technical section for specific pressure information)
- Temperature: -22 ° to +248 °F (-30 ° to 120 °C)
- Liquid: Water, Glycol, Crude Oil and Produced Water; clean water, hot water
- Pressure/water boosting
- Boiler feed
- HVAC
- Hot/Cold water circulation
- Fire fighting
- Filtration
- Reverse osmosis
- Washing systems
- Irrigation
