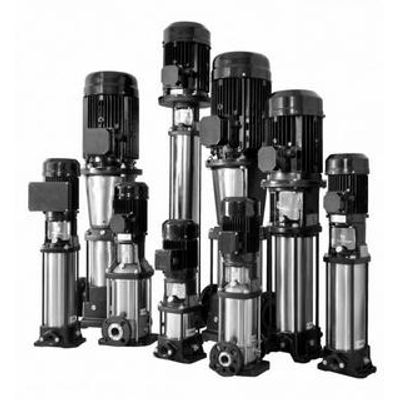

SEI - Model LCR, LCRI and LCRN -Vertical Multistage Pumps
LCR, LCRI and LCRN pumps are vertical multistage centrifugal pumps. The vertical in-line design enables the pump to be installed in a horizontal plane single system where the suction and discharge connections are in the same horizontal plane and have the same pipe sizes. This design provides a more compact pump design saving space and easy pipework.
provide the flow and the pressure for different site conditions.
LCR pumps are suitable for a wide variety of applications from pumping of potable water to the pumping of chemicals.
LCR pumps are available in Cast Iron, 304SS and 316SS construction according to the pumped liquid.
Motors: These pumps are available with 2 pole NEMA C-face motors complying to meet or exceed the efficiency requirements of the US Energy Policy Act of 1992 (EPAct) and Natural Resources Canada Standards (NRCan).
Enclosure Class: TEFC (Totally Enclosed Fan Cooled) or ODP (Open Drip Proof) on request.
Range of Performance
- Head Range: Up to 995 Ft
- Flow Range: Up to 633 GPM
- Power Range: Up to 60 HP
- For thin, non-explosive, not containing solid particles or fibers, non-corrosive liquids are suitable
- For liquid transfer, circulation and pressure boosting of cold or hot clean water
- For water supply systems, pressure boosting systems in buildings and industries, Reverse Osmosis and Ultra filtration systems, Boiler feed and condensate systems.
