New Milestone Group

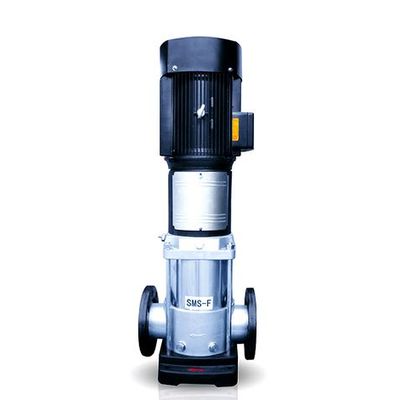

Milestone - Model SMS. SMS-F -Vertical Multistage Pumps
SMS, SMS-F, SMS-I Pump is a kind of multifunctional products. It can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure.
Most popular related searches
vertical multistage pump
multistage pump
vertical multistage centrifugal pump
self priming multistage centrifugal pump
multistage centrifugal pump
vertical pump
tap water
centrifugal pumping
water industry
water treatment
Application
- Irrigation
- Water supply
- Industrial pressure boost
- Liquid transfer and delivery
- Water treatment
Working Condition
- "Thin, clean, non-flammable and non-explosive
- liquid containing no solid granules and fibers"
- Power range from 0.37 kW to 45 kW
- Flow range from 0.7 m³/h to 120 m³/h
- Head up to 309 m
- Temperature range from -20°C to 180°C
Features & Benefits
Pump
- SMS, SMS-F, SMS-I are non-self priming vertical multistage centrifugal pumps.
- The inlet and outlet are located at the pump bottom at the same plane - inline type.
- All pumps are equipped with a maintenance-free mechanical seal of the cartridge type.
Motor
SMS, SMS-F, SMS-I are fitted with a totally enclosed, fan-cooled, 2-pole, three-phase standard motor.
From 0.37kW to 2.2kW, single-phase motor is also available.
Motor Protection
Single-phase motor has a built-in thermal overload switch.
Three-phase motors must be connected to a motor protective circuit breaker according to local regulations.
Benefits
- Nice appearance, light weight and less land area
- High efficiency and energy saving
- Small noise at running
- Simple installation and maintenance
- Safe and durable
