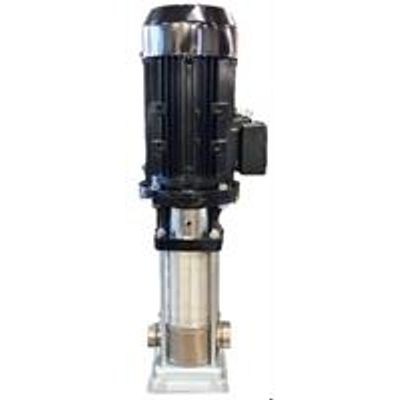

Soggia - Model VSS -Vertical Multistages Stainless Steel Pumps

SHARE

Range of surface multistages pumps with vertical axis completely made in stainless steel AISI 304, built for an high resistance against corrosion. Materials are certified for drinkable water applications. Basement, pump body, impellers and diffusers are built in stainless steel AISI 304; on request available in stainless steel AISI 316. Coupling and motor bracket are made in cast iron G25. VSS can develop flow up to 1230 l/min and head up to 296 meters.

Most popular related searches

surface electric pump

multistage pump

stainless steel pump

vertical stainless steel pump

water circulation system

stainless steel multistage pump

water circulation pumping

Max capacity 1230 l/min (73,8 m³/h )
Max head 296 meters
Rotation speed 2850 r.p.m.
Motor power up to 40 kw
Maximum number of starts per hour: 40
Water temperature from 0 ° C to 120 ° C
Maximum content of suspended sand: 50 g / m³

Outlet ports threaded 2” G up to VSS 500 and 3” G for bigger model
Basement, pump body, impellers and diffusers in AISI 304
Coupling and motor bracket in cast iron G25
Coussinet en bronze et joint torique d’étanchéité en EPDM
Mechanical seal in carbon/silicium

Civil, industrial and agriculture applications
Pumping hot or cold water in circulation systems
Pumping clean water even on industrial machinery
Heating system
Pressure increasing
