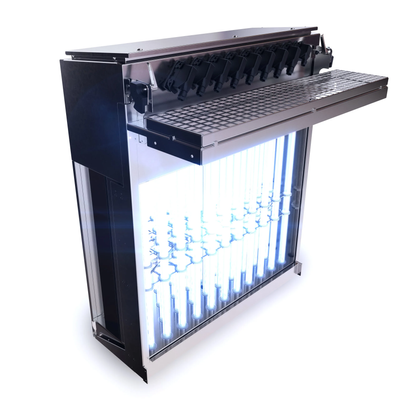

Ultraaqua - Model SS Series -Vertical Open Channel UV Disinfection Systems
The Vertical Open Channel SS series offers safe, chemical-free disinfection for municipal and industrial wastewater disinfection. The ULTRATHERM™ 16 000-hour UV lamps technology with its cross-row layout ensures complete pathogen exposure with market leading energy efficiency.
The robust, modular shell design provides a range of scaling and retrofitting options for existing water treatment infrastructures, such as old chlorination tanks. For even further construction versatility, an inclined configuration is available, as well as a horizontal version. This makes the design easily scalable and capable of treating flows of virtually any size.
The series features a sealed top compartment where the lamps, quartz sleeves, wiping motor, and UV sensors are easily accessed. This allows for quick, easy, and hygienic maintenance procedures while the system is submerged. Additionally, the automated ULTRAWIPER™ technology ensures clean quartz sleeves with tailored brush heads, ensuring operational efficiency.
- Only flood-protected open-channel UV disinfection system designed for wastewater applications
- Maximum design adaptability – fully customisable to virtually any channel dimension
- Minimal footprint for seamless integration into challenging environments
- Guaranteed 16 000-hour ULTRATHERM™ lamp lifetime with CFD-optimised cross-row lamp layout
- Consistent performance ensured through automated ULTRAWIPER™ quartz-sleeve wiping technology
- Available for wall-mount installation for enhanced flexibility
- Streamlined maintenance via easy top-compartment access while system remains submerged
- Advanced control cabinet offers full visibility of UV dose, UVT, flow and power-level parameters
System Characteristics
- LAMP CONFIGURATION : Vertical
- Material : Passivated and Pickled 316L, Super Duplex
- CONFIGURATION : Modular
- Pressure rating : Gravitational
- Flowrates : 5 m3/h (22 GPM) – 24 000 m3/h (150 MGD)
- UV transmission (UVT%) : 20 – 100%
- Lamp type : ULTRATHERM™ Low-pressure High Output (LPHO)
- Lamp lifetime : Guaranteed 16 000 hours
- Integrated Lifting Mechanism : Included
Control cabinet characteristics
- Enclosure material : Painted steel, SS304, SS316L, GFRP
- UV intensity sensor : ÖNORM M 5873-1 certified, PTFE
- Sleeve wiping : Automatic ULTRAWIPER™
- SCADA connection : Profibus, Profinet, MODBUS TCP/IP
- Enclosure rating : IP54, IP65 (NEMA3/4X)
- Lamp driver type : Electronic variable output
- System voltage : 1x230V, 3x400V+N+Pe +/- 10%, 47-63Hz (other optional)
- UV dose pacing : Standard
