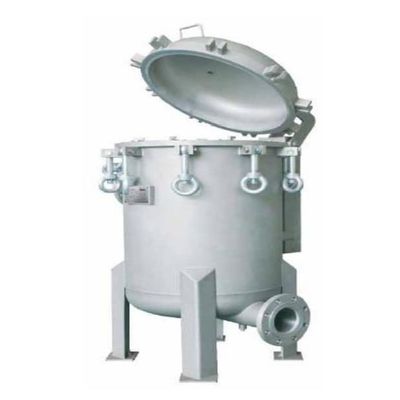

Suzhou-Kosa - Vertical Open Multi-Bag Housing
Our user friendly design multi bag filter with construction from 3 bags to 24 bags to meet larger liquid flow rate requirement up to 1,000 m3/hr, all bag filter design in ASME VIII see VIII DIVI standard.
Most popular related searches
- Vertical open design, fast operation
- Eye-bolt closure is an economic option
- 3-point balance hold, excellent sealing characteristics
- Unique spring lifting cover opening mechanism
- Individual bag locking to ensure perfect sealing
- Design according to ASME Div VIII section
- Custom made order
- 3-bag to 12-bag housing designs available
- Flow rate: 60-480 m3/h
- Maximum operating pressure: 10bar
- Maximum operating temperature: 160 Deg C with Viton seals
- Material of construction: SS304, SS316 or carbon steel
- Surface finish: SS-bead blasted or mechanical polish, CS-painted
