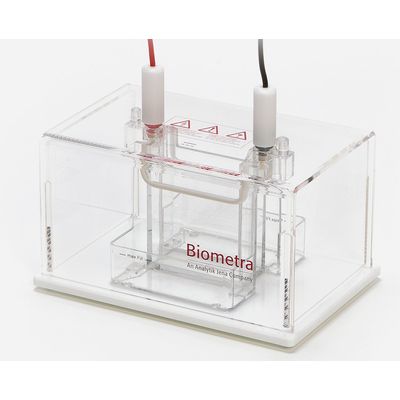

Biometra - Model Minigel-Twin -Vertical Protein Gel Electrophoresis System
The Biometra Minigel-Twin is a vertical protein gel electrophoresis system that allows an efficient separation of proteins. Based on a optimized design, a fast and reliable analysis of your samples meets excellent resolution. Simplify your daily lab routine and convince yourself of the remarkable ease-of-use.
Most popular related searches
gel electrophoresis system
gel electrophoresis
electrophoresis system
polyacrylamide gel electrophoresis
general laboratory equipment
electrophoresis gel
vertical electrophoresis system
protein electrophoresis
electrophoresis
sealing system
- Robust double-gel system with sophisticated design
- Easy handling
- Compatible with almost all standard PAGE precast gels
- High selectivity despite short running times
- Glass plates with fixed glass spacers
- Excellent sealing system (profiled silicone seal) ensures user-friendly, leak-proof casting of polyacrylamide gels
Minigel-Twin
- Gel format: Mini
- Glass plate size (W x L): 10.5 x 9.8 cm
- Gel size (W x L ): 8.6 x 7.7 cm
- Number of gels: 1 - 2
- Gel thickness: 0.6/1.0 mm
- Glass plates with fixed spacers: Yes
- Electrode material: Platinum
- Compatibility with precast gels: Yes
- Gel casting system: Silicon rubber seal
- Max. Voltage: 400 V
- Max. Current : 50 mA
- Max. Power: 20 W
- Buffer volume: 440 ml
- Max. Buffer Temperature: 50 °C
- Dimensions (W x L x H): 23.6 x 16.0 x 18.2 cm
- Weight: 2.0 kg
