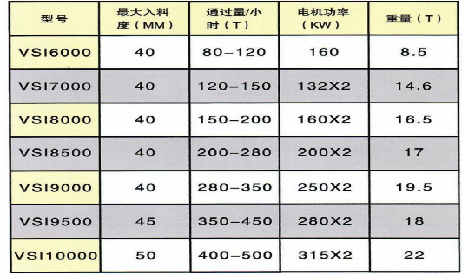

Sunvit - Model VSI6000/7000/8000/8500/9000/9500/10000 -Vertical Shaft Impact Crusher
VSI Vertical-shaft impact crusher is commonly known as the impact crusher or aggregate shaper. VSI crusher is the fourth generation of high-performance sand-making machine developed by SVT on the basis of introducing advanced Aboard technologies about sand makers and analyzing domestic situations of mining industry. Taking VSI Sand Maker as the prototype, SVT has pushed out upgraded VSI series Sand Maker and VSI crusher successively.
The material can be directly entered by the rotor and thrown out after centrifugal acceleration, Collision with the perimeter plate shattered, It can also be diverted by bulk disc, Some are scattered from all sides, The other part enters the rotor and accelerates and rushes out to collide and rub with the surrounding scattered materials, And collided with the weekly guard plate, rebounded, Form a cyclic strike, Proceeds with crushing, Small particles of material gradually form a material layer curtain near the perimeter shield, Improves the crushing effect, And to protect the equipment, The finished product that meets the specifications is discharged from the lower outlet.
- Special design of the rotor and cavity, high processing capacity, high sand ratio excellent grain shape;
- Intelligant thin oil circulation librisating system.multble protective measures, long service Ife of the bearing;
- The automatic iydr£ulic uncap device is last and convenient lor maintenance;
- Special structures and materials ol wear-resistant parts, exlending service life, reducing operation costs.
