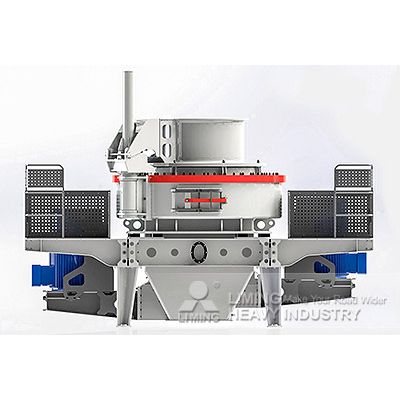

Liming - Model VSI6X Series -Vertical Shaft Impact Crusher

New design, efficient crushing
Impeller structure adopts the design of four openings to improve the material throughput. Compared to the three opening impeller, the crushing efficiency is improved by 20%.

Technology upgrade, cost decreasing and benefit increasing
“Crushing between material” work pattern is adopted to reduce wear-resisting type and cost; Comparing with the earlier equipment, the impeller lifespan is raise up by 30-200% on the situation of same material.

Unique design, quality assurance
Equipment transmission parts special sealed cartridge bearing structure prevents leakage, won three national patents; good bearings, reduce transmission failure.

Efficient working, easy maintenance
New lifting device to facilitate customer maintenance of the equipment, saving labor;  efficient operation.

The motor drives the main shaft to make the impeller to rotate at a high speed. The material which entered impeller will speed up and ejected to crushing chamber, and then impact with the material liner that shaped in crushing chamber. In this process, to make the kinetic energy got from speeding up transform to energy need for crushing and shaping. The material will recycle for many times in the crushing chamber. After many times crushing and shaping, by the function of around gas eddy, to achieve constantly crushing and shaping. The final products are discharged from bottom outlet of machine body. This crushing method is ‘crushing between materials’, and it is used for material shaping. Besides, this machine also has another crushing method ‘crushing between material and liner’. To compare with ‘crushing between materials’, the difference is: After material ejected from impeller, the material will impact with liner installed in crushing chamber. After impacting, the material will discharge from bottom outlet of machine body directly, and it does not recycle many times in crushing chamber. This crushing method is mainly used for crushing (target for large crushing ratio).

1. The equipment is suitable for brittle materials Mohs hardness of less than 9, and is not suitable for viscous material and soil containing more material;
2. The equipment can be widely used in metallic and non-metallic ore, building material, artificial sand making and every kind of metallurgical slag;
3. VSI6X1263 Vertical Shaft Impact Crusher applicable to the material moisture content below 20%; operating environment is no special requirements for altitude, temperature, humidity, electrical control required in accordance with the technical requirements for the design of electrical, motor control to meet the requirements;
4. It can be used for coal and calcium carbide and other special combustible materials processing.
