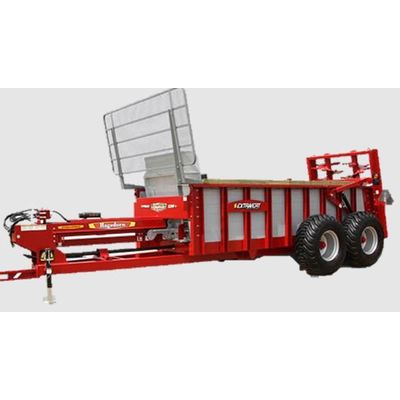

Penta - Model 5290V -Vertical Spreaders
Capacity: Heaped Volume: 524 cu ft / 14.8 m3. Struck Level (ASAE S324.1): 290 cu ft / 8.2 m3. Heaped Bushels (ASAE S237.1): 421. Carrying Capacity: 24,000 lbs / 10,850 kgs
Inside Width: 67 in / 170.2 cm
Inside Depth: 40 in / 101.6 cm
Inside Length (ASAE S324.1): 16 ft / 4.9 m
Overall Length: 28 ft / 8.5 m
Overall Width (with Tires):
425 x 22.5 Truck Type Tires: 120 in / 304.8 cm
44/18 x 20 Traction Implement: 124 in / 315.0 cm
500/50 x 22.5 Traction Implement: 125 in / 317.5 cm
Beater Configuration: Vertical
Beater Diameter: 34.6 in / 87.9 cm
Beater Speed: 420 RPM
Axle Type: Oscillating Tandem
Wheel Hub Type: 8 Bolt
Wheel Hub Capacity: 12,000 lbs / 5,443 kgs
Wheel Spindle Diameter: 3 in / 7.6 cm
Tandem Spindle Diameter: 4 in / 10.2 cm
Drop Axles (Optional): 6 in / 15.2 cm Drop
End Gate: Standard
Wood Rails: Standard
Beater Pan: Standard
Stone Guard: Standard
