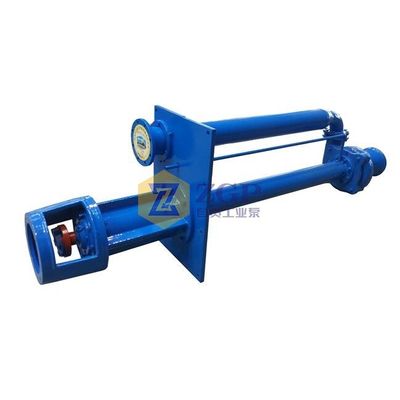

Zigong - Model ZLX Series -Vertical Submerged Slurry Pump

FromSichuan Zigong Pump & Valve Co., Ltd.

SHARE

ZLX vertical submerged slurry pump adopts cantilever and double-bracket structure, which increased the reliability and stability during operation. According to the liquid level requirements, a suction pipe of less than 2 m can be added to the pump inlet. More than 10 kinds of materials are available for different applications. It is suitable to pump fluids with suspended particles, and is widely used in industries of power plant, chemical, petrochemical, mines and cement.

Most popular related searches

vertical slurry pump

non-ferrous metal

variable frequency drive

sedimentation basin

water transmission

hydraulic modeling

non-ferrous metal aluminum

water regulations

Flow rate:Q=9~460 (m³/h)
Total head:H=10~65 (m)
Speed:n=1450rpm
S.g.:γ ≤1.5
Temperature:T=0~80?
Pump diameter:50~200mm

Conforms to JB/T8096-1998 standard.
Double bracket structure design increases the reliability and stability.
Optimized hydraulic models with better ability to fit the applications.
Several standard installation depths,a suction pipe can be added to the pump inlet if the installation depth is above 1.5 m.
Low pump speed and linear speed design to reduce the abrasion of pump.
Various anti-abrasion materials for different applications.

Single casing structure,casing is connected to the connecting pipe,and connecting pipe is connected to the bearing housing,and bearing housing is connected to the baseplate.
Cylinder type bearing housing with rolling bearings.
Restrictor seal without external flushing water.
Transmission: Direct coupled,variable frequency drive.

Sewage conveying of power plant,mining,cement,steel,non-ferrous metal.
Fluid conveying of aluminum oxide producing process.
Slurry conveying of sedimentation basin of other industries.
