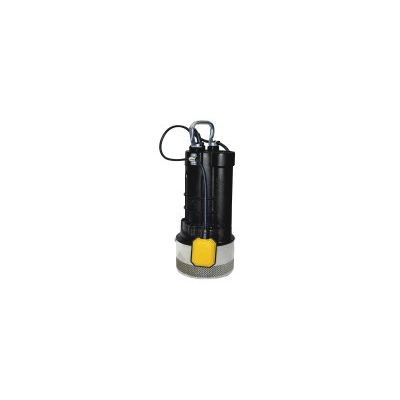

Turbo - Model 200 - 250 -Vertical Submersible Multistage Electric Pumps
FromArven S.r.l.
Applications: Particularly suited to the agricultural and farming sectors for irrigation purposes, for catch tank and reser voir catch-water pump out, from 8 to 10 inch well, with 10-20 mt deep, water basin and water drain flow pump out. For industrial cooling, feed-in and discharge water handling. For pressurisation, with tank or well pump inclusion. For fountains.
Most popular related searches
submersible pump
water pump
water basin
bearing lubrication
water drain
drain flow
industrial cooling
well pumping
well pump
electric pump
- pump head : 39.5 mt to 44 mt
- delivery: 18 m3/h
- rated horsepower : 1.5kw (2.0hp) to 2.25 kw (3.0hp)
design engineering
- oil bath motor (biodegradable and dielectric) for cooling and bearing lubrication.
- double sealing ring - engine face.
- oil bath mechanical seals.
- permissible draught of water: 20 m.
- ip 68 protection class.
- class “f” insulation.
- max. pumped liquid temperature: 35°c.
- versions: single phase: 220-277v/50hz with built in thermal protection. Three phases: 220-277v/50hz or 380-480v/50hz with overload protection care of the user.
- automatic single phase versions up to 1.1 kw (2.0 hp). Single phase versions from 1.5 kw (3.0 hp) only manual, without floater
- standard cable features: single phase: h05vvf 10mt complete with power supply box 0,7 m cable section, without connection plug. Three phases: h05vvf 10mt without connection plug.
