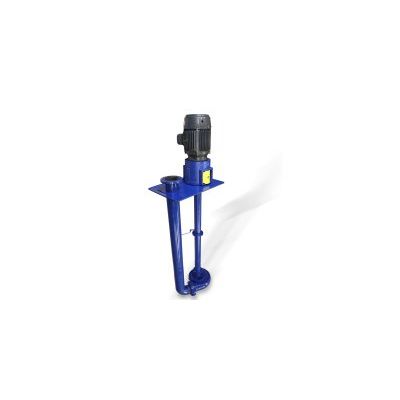

Carver - Model G2S -Vertical Sump Pump

Modular in design, the G2S sump pump is designed for flows to 2500 GPM and for sump depths to 22 feet. The entire series is based on the same wet-ends as our horizontal pumps, ensuring extensive hydraulic coverage, including options available for solids or abrasives handling. All models feature external impeller adjustment, bearings above the mounting plate, and full compatibility with standard NEMA ‘C’ motor faces.

The G2S is offered with standard carbon line shaft bearings that comply with API 610 spacing guidelines, to ensure smooth operation away from resonant frequencies. Other bearing materials are available. Lubrication options include greased-for-life, product lubrication or external flush.

Common options include extra-large discharge piping, and stainless steel wetted parts and underliners. Automatic greasers, control panels with float switch actuators, and automatic stop/start sequencing are also available to satisfy system requirements.

The pump comes standard with lip seals at top plate. However an optional stuffing box can be fitted with packing or a variety of mechanical seal types. For vapor-tight operation the G2S is available with a machined and gasketed top plate, and welded seams around the discharge pipe.

Hydraulics
Flows to
2,500 US GPM
570 m3/hr
Efficiencies
80%

Solids to
1.250" diameter
32mm

Power To
75 HP
55 KW

Depths To
22 Feet

Standard Materials of Construction

• Casing Cast Iron or 316 SS
• Impeller Cast Iron or 316 SS
• Lineshaft Bearing Carbon
• Piping Carbon Steel or 316 SS
• Shaft Carbon Steel or 316 SS
• Support Column Carbon Steel or 316 SS
• Throttle Bushing Steel, 316 SS, Teflon or 17-4PH SS
• Top Plate Carbon Steel or 316 SS
• Other materials of construction available upon request.

Design Data

• Speed Up To 3550 RPM
• Input Power Up To 75 HP
• Discharge Connection Class 150 ANSI Flange
• Bearing Lubricant Grease

• Bilge transfer
• Caustic and chemical feed
• Coating, surface treatment and spray paint systems
• District flood control
• Irrigation systems
• Light hydrocarbon transfer
• Lube oil supply for rotating equipment
• Mine and landfill dewatering
• Phosphoric and sulfuric acids
• Refinery offsite loading and transfer
• Sump collection and drain
• Various OEM and proprietary systems
• Wastewater evacuation
• Wastewater treatment systems
